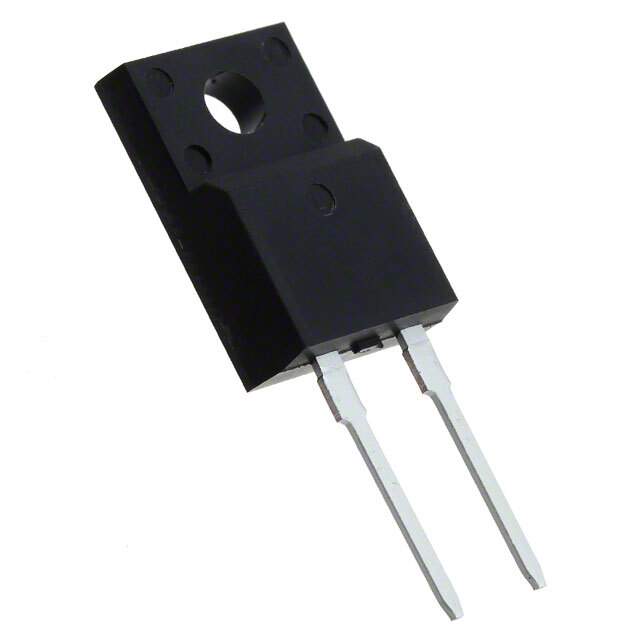

Same model may have multiple batches, images only for reference.

SCS315AMC

Name: SCS315AMC
Brand: Rohm Semiconductor
SKU: 1091908
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SCS315AMC
Manufacturer	Rohm Semiconductor
Catalog	Diodes, Rectifiers - Single
Description	DIODES SILICON CARBIDE / Diode Silicon Carbide Schottky 650 V 15A (DC) Through Hole TO-220FM
Datasheet	SCS315AMC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Rohm Semiconductor
Package	Tube
Diode Type	Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max)	650 V
Current - Average Rectified (Io)	15A (DC)
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 15 A
Speed	No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)	0 ns
Current - Reverse Leakage @ Vr	75 µA @ 650 V
Capacitance @ Vr, F	750pF @ 1V, 1MHz
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack
Supplier Device Package	TO-220FM
Operating Temperature - Junction	175°C (Max)
Base Product Number	SCS315
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Standard Package	50
Win Source Part Number	1091908-SCS315AMC
Ultra Librarian 3D Model	Ultra Librarian SCS315AMC CAD Model

Alternative Products

Description

The SCS315AMC is a silicon carbide Schottky diode manufactured by Rohm Semiconductor.

Maximum DC Reverse Voltage: 650V
Average Rectified Current: 15A
Package: TO-220-2 full pack
Mounting: Through Hole
Capacitance @ 1V, 1MHz: 750pF
Operating Temperature: Up to 175°C
Win Source Part Number: 1091908-SCS315AMC
Category: Discrete Semiconductor Products
