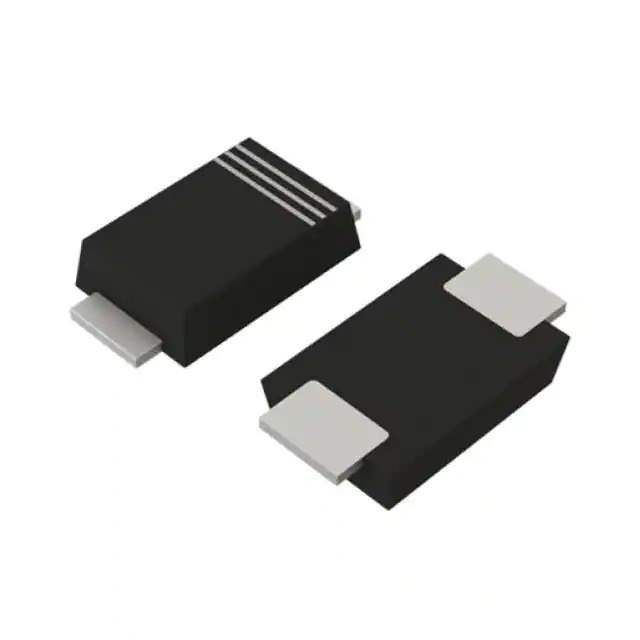

RSX501LAM20TR Real Image
Same model may have multiple batches, images only for reference.

RSX501LAM20TR

Part No RSX501LAM20TR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 5A PMDTM
Datasheet
RSX501LAM20TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 390 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 20 V
Mounting Type Surface Mount
Package / Case SOD-128
Supplier Device Package PMDTM
Operating Temperature - Junction 150°C (Max)
Base Product Number RSX501
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 850686-RSX501LAM20TR
Ultra Librarian 3D Model Ultra Librarian RSX501LAM20TR CAD Model

Description

The 850686-RSX501LAM20TR is a fast recovery Schottky diode designed for rectification applications manufactured by Rohm Semiconductor.

  • Category: Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
  • Maximum Reverse Voltage: 20 V
  • Average Rectified Current: 5A
  • Forward Voltage Drop: 390 mV @ 3 A
  • Mounting Type: Surface Mount
  • Package: SOD-128
  • Standard Package: 3,000 pcs
