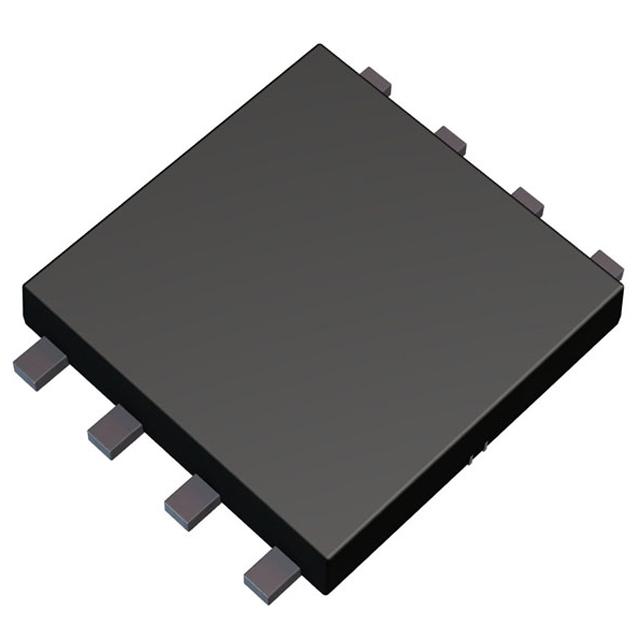

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 13A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.5V @ 1mA
Max Gate Charge 12nC @ 10V
Max Input Capacitance 650pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3W (Ta)
Maximum Rds On at Id,Vgs 12.6 mOhm @ 13A, 10V
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-PSOP
Dimension 8-SMD, Flat Lead
Win Source Part Number 139884-RMW130N03TB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RMW130N03TB CAD Model

Description

The RMW130N03TB is an obsolete N-channel MOSFET manufactured by Rohm Semiconductor.

  • Type: N-channel MOSFET
  • Applications: high-speed switching applications, power management applications, including DC-DC converters, power supplies, and motor control circuits
  • Power Dissipation: 3W (Ta)
  • Drain-Source Breakdown Voltage: 30V
  • Package: 8-PSOP
  • Packaging: reel
