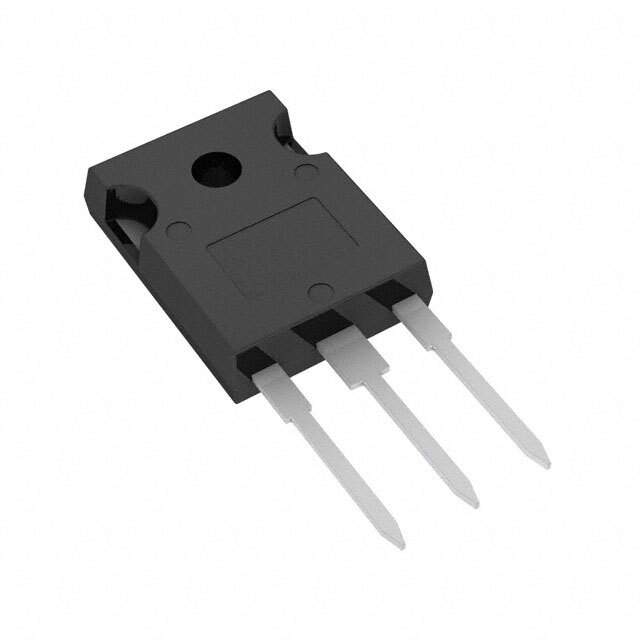

RGC80TSX8RGC11 Real Image
Same model may have multiple batches, images only for reference.

RGC80TSX8RGC11

Part No RGC80TSX8RGC11
Manufacturer Rohm Semiconductor
Catalog IGBTs - Single
Description IGBT TRENCH FLD 1800V 80A TO247N / IGBT Trench Field Stop 1800 V 80 A 535 W Through Hole TO-247N
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr Rohm Semiconductor
Package Tube
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1800 V
Current - Collector (Ic) (Max) 80 A
Current - Collector Pulsed (Icm) 120 A
Vce(on) (Max) @ Vge, Ic 5V @ 15V, 40A
Power - Max 535 W
Switching Energy 1.85mJ (on) , 1.6mJ (off)
Input Type Standard
Gate Charge 468 nC
Td (on/off) @ 25°C 80ns/565ns
Test Condition 600V, 40A, 10Ohm, 15V
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247N
Base Product Number RGC80
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1340698-RGC80TSX8RGC11
Ultra Librarian 3D Model Ultra Librarian RGC80TSX8RGC11 CAD Model

Description

The Rohm Semiconductor RGC80TSX8RGC11 is a single IGBT designed for discrete semiconductor products.

  • Power Output: 535W
  • Voltage Breakdown: 1800V
  • Technology: Trench Field Stop
  • Gate Charge: 468 nC
  • Test Condition: 600V, 40A, 10Ohm, 15V
  • Switching Energy (On): 1.85mJ
  • Switching Energy (Off): 1.6mJ
  • Package: TO-247-3
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C to 175°C
