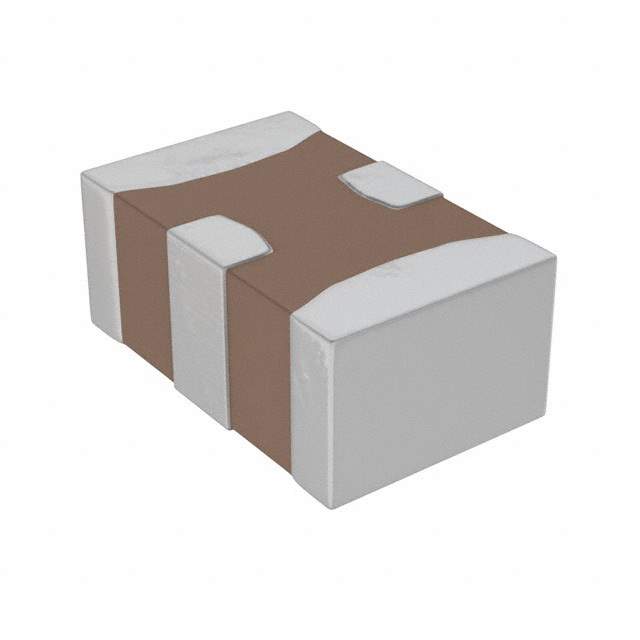

The CKD510JB1E223S is a ceramic capacitor manufactured by TDK Corporation. As a ceramic capacitor, it's primarily used for decoupling, filtering, and bypass applications in electronic circuits. The specific characteristics of this capacitor, such as its capacitance, voltage rating, and temperature coefficient, determine its suitability for various applications.

Applications

• Decoupling capacitors in power supplies
• Bypass capacitors in digital circuits
• Filtering in analog signal processing
• Timing circuits

Features

• Ceramic dielectric
• High capacitance to volume ratio
• Stable performance over temperature variations
• Low equivalent series resistance (ESR)

Benefits

• Provides stable voltage supply by filtering out noise
• Reduces signal interference and improves signal integrity
• Enables compact circuit designs due to small size
• Ensures reliable operation over a wide range of temperatures

Additional Details

The '223' in the part number likely indicates a capacitance value of 22000 pF (22 x 10^3 pF). The voltage rating and tolerance are crucial specifications that determine the capacitor's ability to withstand voltage spikes and the accuracy of its capacitance value. The ceramic material used in its construction offers high stability and low losses, making it a reliable component in sensitive electronic circuits. Its compact size allows for dense packaging in modern electronic devices.
