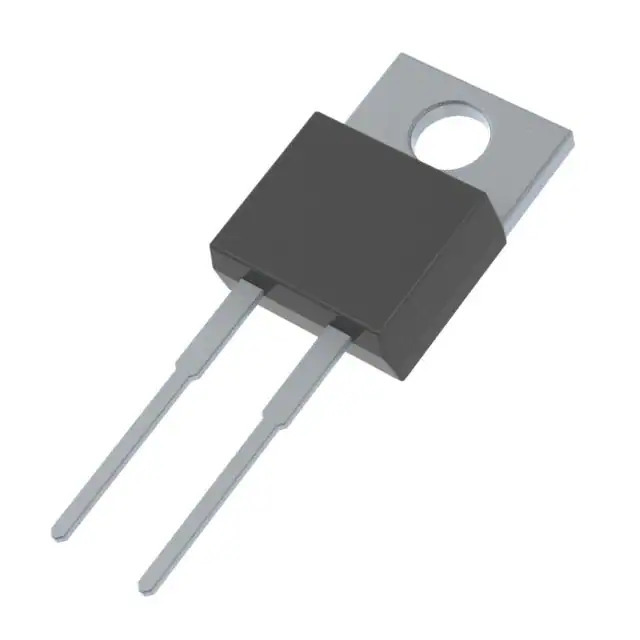

Same model may have multiple batches, images only for reference.
RFUH20TB3SNZC9 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

RFUH20TB3SNZC9

Part No RFUH20TB3SNZC9
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 350V 20A TO220NFM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Rohm Semiconductor
Series -
Package Tube
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 350 V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 25 ns
Current - Reverse Leakage @ Vr 10 nA @ 350 V
Capacitance @ Vr, F -
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220NFM
Operating Temperature - Junction 150°C
Base Product Number RFUH20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366921-RFUH20TB3SNZC9
Ultra Librarian 3D Model Ultra Librarian RFUH20TB3SNZC9 CAD Model

Description

The 1366921-RFUH20TB3SNZC9 is a single rectifier diode from Rohm Semiconductor.

  • Maximum Reverse Voltage: 350V
  • Average Rectified Current: 20A
  • Forward Voltage: 1.5V @ 20A
  • Recovery Type: Fast Recovery
  • Reverse Recovery Time: 25ns
  • Reverse Leakage Current: 10nA @ Maximum Reverse Voltage
  • Mounting Type: Through Hole
  • Package: TO-220-2 Full Pack
