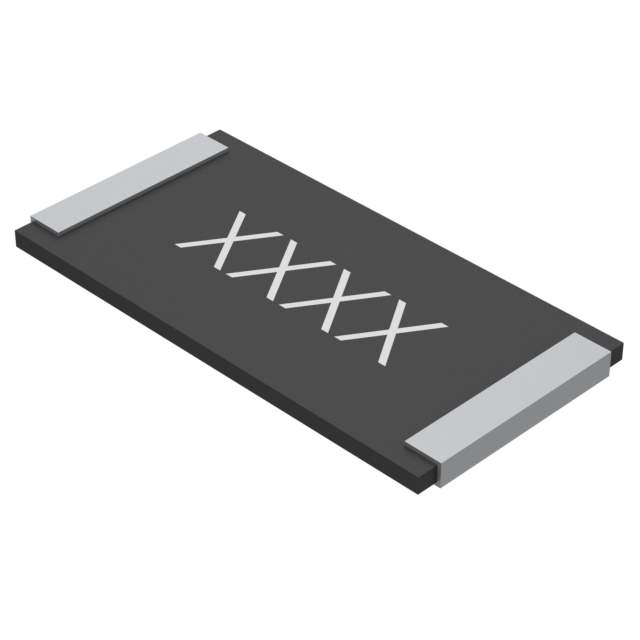

PMR100HZPFU10L0 Real Image
Same model may have multiple batches, images only for reference.

PMR100HZPFU10L0

Part No PMR100HZPFU10L0
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.01 OHM 1% 2W 2512 / Res 2512 0.01 Ohm 1% 2W ±100ppm/°C Pad SMD Automotive T/R
Datasheet
PMR100HZPFU10L0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Rohm Semiconductor
Series PMR
Packaging Reel package
Resistance (Ohms) 0.01
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package 2512 (6432 Metric)
Manufacturer Package 2512
Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Maximum) 0.019" (0.47mm)
Number of Terminations 2
Win Source Part Number 792434-PMR100HZPFU10L0
Popularity Medium
Supply and Demand Status Limited
Family Name PMR
Introduction Date May 07, 2003
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PMR100HZPFU10L0 CAD Model

Description

The PMR series resistor is manufactured by Rohm Semiconductor.

  • Type: Thick Film
  • Resistance: 0.01 ohms
  • Power Rating: 2 watts
  • Applications: Automotive
  • Temperature Range: -55°C to 155°C
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Package: 2512 (6432 Metric)
  • Terminations: 2
  • Compliance: AEC-Q200
  • Applications: Current Sensing
  • Alternative Parts: TLR3A20DR01FTDG, CSFN2.011%I, LRF2512-R010FW, ULRG22512R010FLFSLT
  • Supply and Demand Status: Limited
