Same model may have multiple batches, images only for reference.

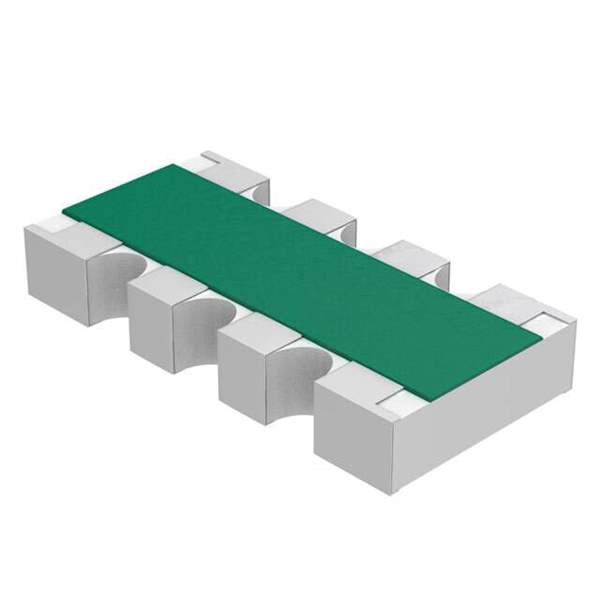

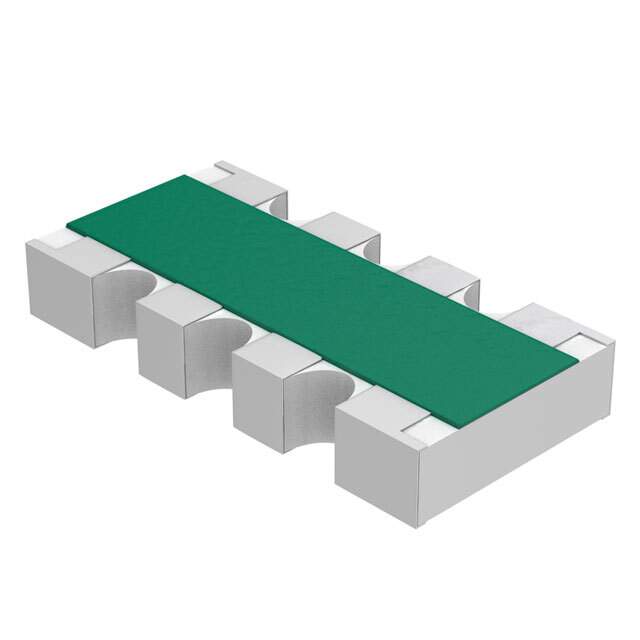

MNR14E0APJ102 Real Image
Same model may have multiple batches, images only for reference.

MNR14E0APJ102

Part No MNR14E0APJ102
Manufacturer Rohm Semiconductor
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 1K OHM 1206  /  1k Ohm ±5% 62.5mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Datasheet
MNR14E0APJ102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Rohm Semiconductor
Series MNR
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 1k
Tolerance ±5%
Number of Resistors 4
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Convex, Long Side Terminals
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Other Names MNR14102RDKR,1056-MNR14E0APJ102,MNR14102RCT,1056-MNR14E0APJ102-CHP,MNR14102RTR,1056-MNR14J102
Standard Package 5,000
Win Source Part Number 965137-MNR14E0APJ102
Ultra Librarian 3D Model Ultra Librarian MNR14E0APJ102 CAD Model

Description

The MNR14E0APJ102 resistor network is a high-quality product from Rohm Semiconductor.

  • Series: MNR
  • Application: Automotive
  • Package: Tape and Reel
  • Standard Package: 5,000
  • Mounting: SMD (SMT)
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Resistance: 1k ohms
  • Circuit Type: Isolated
  • Resistors: Four
  • Pins: Eight
  • Power per Element: 62.5mW
  • Package/Case: 1206 (3216 Metric), Convex, Long Side Terminals
  • Operating Temperature: -55°C to 155°C
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Choice: High-quality resistor network for automotive applications
