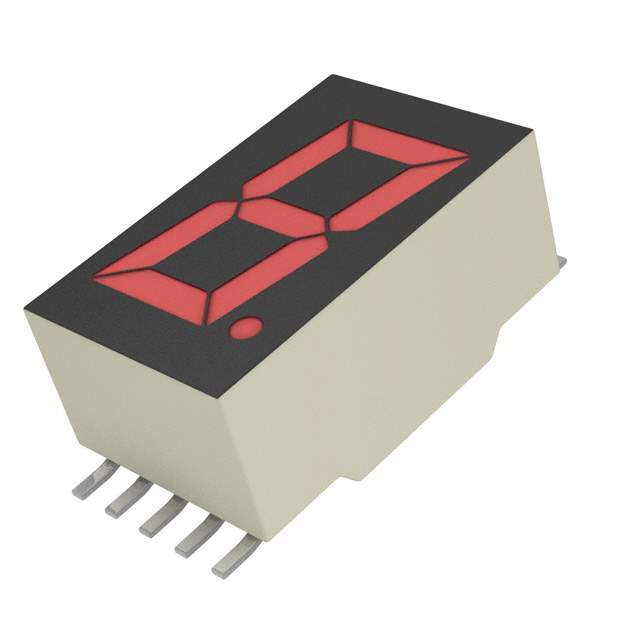

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Characters 1
Digit/Alpha Size 0.31" (8.00mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Forward Voltage 2V
Current - Test 10mA
Millicandela Rating 10mcd
Wavelength - Peak 650nm
Power Dissipation (Max) 40mW
Dimension 10-SMD
Win Source Part Number 1052291-LF-301VA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LF-301VA CAD Model

Description

The Rohm Semiconductor LF-301VA is a 7-segment display that comes in a 10-SMD package.

  • Forward Voltage: 2V
  • Millicandela Rating: 10mcd
  • Current-Test: 10mA
  • Wavelength-Peak: 650nm
  • Power Dissipation (Max): 40mW
  • Category: Optoelectronics
  • Status: Obsolete (EOL)
