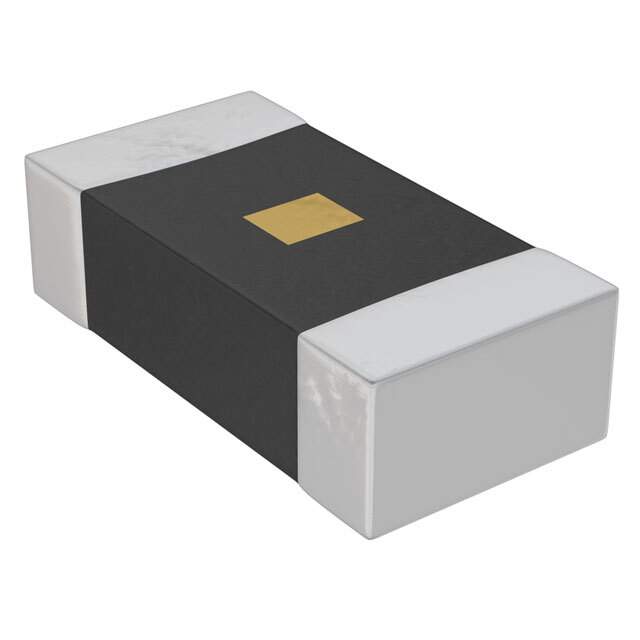

The KTR18EZPF3304 is a thick film chip resistor manufactured by Rohm Semiconductor. It's designed for surface mount technology (SMT) applications requiring precise and reliable resistance in a compact form factor.

Applications

• General-purpose electronics
• Power supplies
• Motor controls
• LED lighting
• Automotive electronics

Features

• High power rating (0.25W)
• Compact 1206 package size
• ±1% tolerance
• Thick film resistor element
• Excellent long-term stability
• RoHS compliant

Benefits

• Precise resistance value ensures accurate circuit performance
• High power rating allows for use in demanding applications
• Small size saves board space
• High stability ensures reliable operation over time
• Reduces the BOM (Bill of Materials) by offering high reliability

Specifications

The KTR18EZPF3304 resistor has a resistance value of 3.3MΩ (3304 = 330 x 10^4). Its power rating is 0.25W. The tolerance is ±1%. The temperature coefficient of resistance (TCR) is ±100 ppm/°C. The operating temperature range is -55°C to +155°C. The resistor is housed in a 1206 package (3.2mm x 1.6mm). The maximum working voltage is 200V. The resistance element is made of a thick film material. The termination finish is matte tin plating. The resistor conforms to the RoHS directive, meaning it's lead-free and compliant with environmental regulations.

Due to its high resistance value, it is often used in circuits where large voltage drops are needed with minimal current flow.
