Same model may have multiple batches, images only for reference.

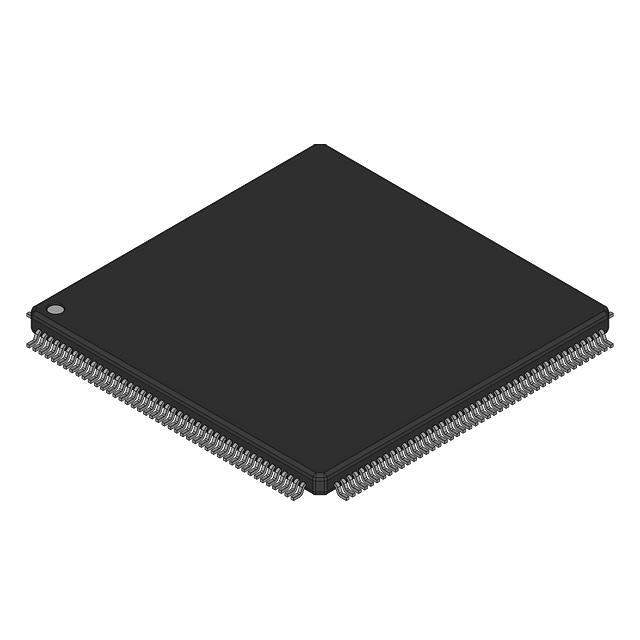

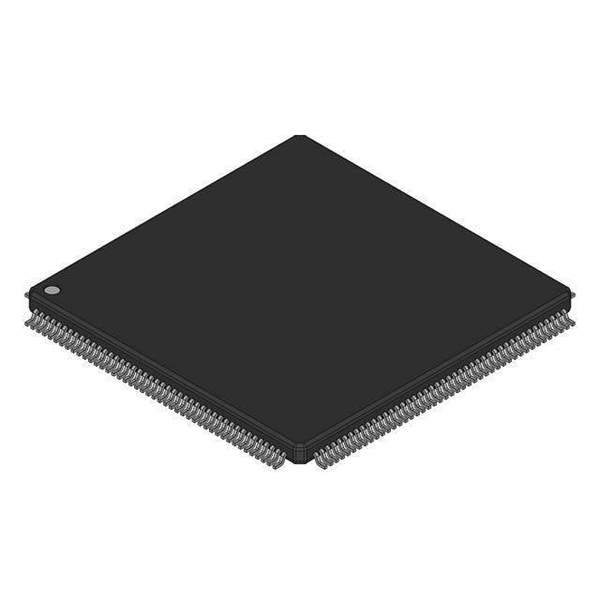

SPC5646CF0MLU1 Real Image
Same model may have multiple batches, images only for reference.

SPC5646CF0MLU1

Part No SPC5646CF0MLU1
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 3MB FLASH 176LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features e200z4d, e200z0h series Microcontroller IC 32-Bit Dual-Core 80MHz/120MHz 3MB (3M x 8) FLASH 176-LQFP (24x24)
Manufacturer Freescale Semiconductor - NXP
Series MPC56xx Qorivva
Package Bulk
Core Processor e200z4d, e200z0h
Core Size 32-Bit Dual-Core
Speed 80MHz/120MHz
Connectivity CANbus, Ethernet, I2C, LINbus, SCI, SPI
Peripherals DMA, POR, PWM, WDT
Number of I/O 147
Program Memory Size 3MB (3M x 8)
Program Memory Type FLASH
EEPROM Size 64K x 8
Supply Voltage 3V ~ 5.5V
Data Converters A/D 27x10b, 5x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 176-LQFP
Case / Package 176-LQFP (24x24)
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 934813-SPC5646CF0MLU1
Ultra Librarian 3D Model Ultra Librarian SPC5646CF0MLU1 CAD Model

Description

The Freescale Semiconductor - NXP 862034 is a 32-bit dual-core microcontroller IC from the MPC56xx Qorivva series.

  • Speed: 80MHz/120MHz
  • Program Memory: 3MB (3M x 8) FLASH
  • Core Processors: e200z4d, e200z0h
  • Connectivity: CANbus, Ethernet, I2C, LINbus, SCI, and SPI
  • Peripherals: DMA, POR, PWM, and WDT
  • I/Os: 147
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Supply Voltage: 3V ~ 5.5V
