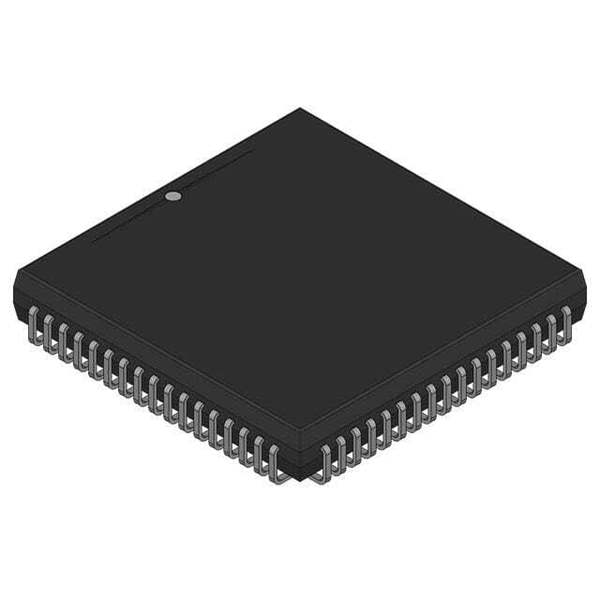

Same model may have multiple batches, images only for reference.
QX87C196LA20

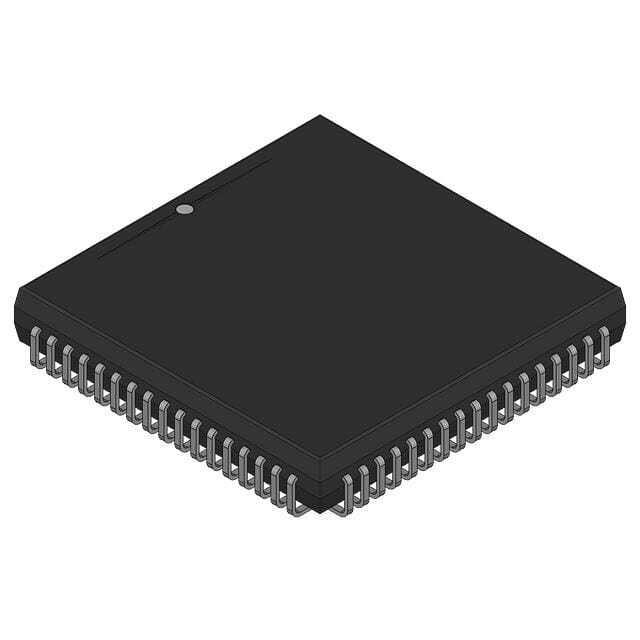

Same model may have multiple batches, images only for reference.

QX87C196LA20

Part No QX87C196LA20
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 24KB OTP 52PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features MCS 96 series Microcontroller IC 16-Bit 20MHz 24KB (24K x 8) OTP 52-PLCC (19x19)
Manufacturer Intel
Series 87C
Package Bulk
Core Processor MCS 96
Core Size 16-Bit
Speed 20MHz
Connectivity SIO
Peripherals WDT
Number of I/O 41
Program Memory Size 24KB (24K x 8)
Program Memory Type OTP
Supply Voltage 4.75V ~ 5.25V
Data Converters A/D 6x10b
Oscillator Type Internal
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting Surface Mount
Package 52-LCC (J-Lead)
Case / Package 52-PLCC (19x19)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
Quantity per package 1
Popularity High
Supply and Demand Status Limited
Win Source Part Number 890658-QX87C196LA20
Ultra Librarian 3D Model Ultra Librarian QX87C196LA20 CAD Model

Description

The 87C196LA20 is a MCS 96 series microcontroller IC designed for use in a range of electronic devices from Intel.

  • Series: MCS 96
  • Component: 16-bit
  • Core Processor Speed: 20MHz
  • Program Memory Size: 24KB (24K x 8) OTP
  • Data Converter: A/D 6x10b
  • Supply Voltage: 4.75V to 5.25V
  • Package Size: 52-PLCC (19x19)
  • Mounted: surface mount
  • Popularity Rating: high
  • Quantity per Package: 1
  • Operating Temperature Range: 0°C to 70°C
