Same model may have multiple batches, images only for reference.

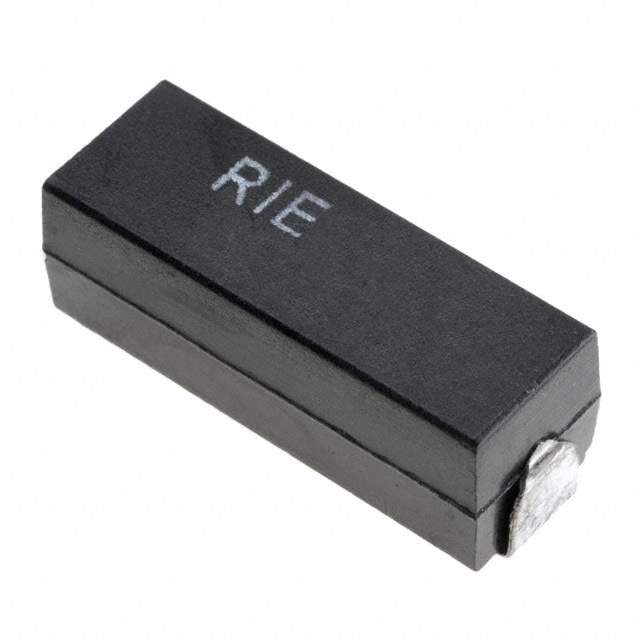

S5-47KJ1 Real Image
Same model may have multiple batches, images only for reference.

S5-47KJ1

Part No S5-47KJ1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 47K OHM 5% 4W 8230 / 47 kOhms ±5% 4W Chip Resistor 8230 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 47 kOhms
Tolerance ±5%
Power (Watts) 4W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 8230 J-Lead
Dimension 0.819" L x 0.296" W (20.80mm x 7.50mm)
Height - Seated (Max) 0.319" (8.10mm)
Number of Terminations 2
Other Names S-5 47000 OHM 5%,S-5-47000JTR,S-5-47000JTR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237171-S5-47KJ1
Ultra Librarian 3D Model Ultra Librarian S5-47KJ1 CAD Model

Description

The Riedon S-5-47KJ1 resistor is a high-quality, chip resistor that is perfect for use in a wide range of electronic devices.

  • Composition: Wirewound
  • Terminations: 2
  • Power Rating: 4W
