Same model may have multiple batches, images only for reference.

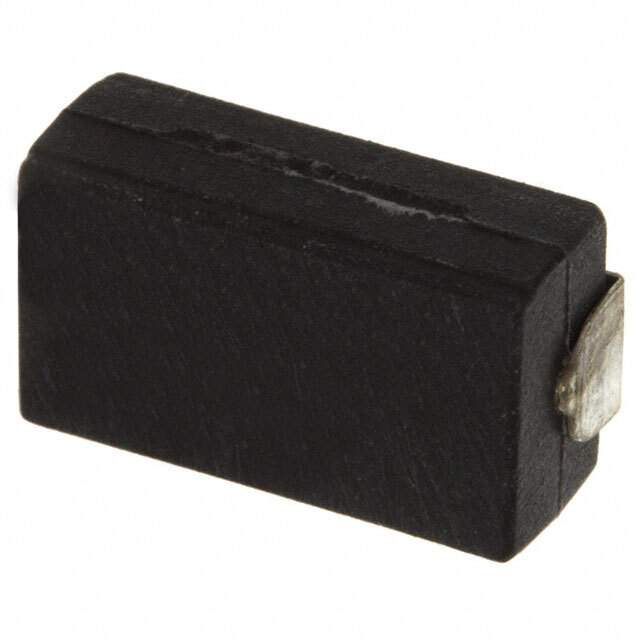

S4-124RF1 Real Image
Same model may have multiple batches, images only for reference.

S4-124RF1

Part No S4-124RF1
Manufacturer Riedon
Catalog Chip Resistor - Surface Mount
Description RES SMD 124 OHM 1% 2W 4525 / 124 Ohms ±1% 2W Chip Resistor 4525 J-Lead Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety Wirewound
Datasheet
S4-124RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Riedon
Series S
Package Tape & Reel (TR)
Resistance 124 Ohms
Tolerance ±1%
Power (Watts) 2W
Composition Wirewound
Features Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safety
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Package / Case 4525 J-Lead
Dimension 0.449" L x 0.252" W (11.40mm x 6.40mm)
Height - Seated (Max) 0.197" (5.00mm)
Number of Terminations 2
Other Names S-4-124FTR,S-4-124FTR
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1237191-S4-124RF1
Ultra Librarian 3D Model Ultra Librarian S4-124RF1 CAD Model

Description

The Riedon S series resistor is a wirewound composition resistor that is current sense, flame proof, moisture resistant, pulse withstanding, and safe to use.

  • Tolerance: ±1%
  • Power Rating: 2W
  • Package: 4525 J-lead
  • Terminations: 2
  • Temperature Range: -55°C to 275°C
  • Resistance: 124 Ohms
  • Dimensions: 0.449" L x 0.252" W (11.40mm x 6.40mm)
  • Height - Seated (Max): 0.197" (5.00mm)
  • Standard Package: 250
  • Made in: Germany
  • REACH: Affected
  • HTSUS: 8533.21.0080
  • Series: S series
  • Composition: Wirewound
  • Features: Current Sense, Flame Proof, Moisture Resistant, Pulse Withstanding, Safe
  • Manufacturer: Riedon
