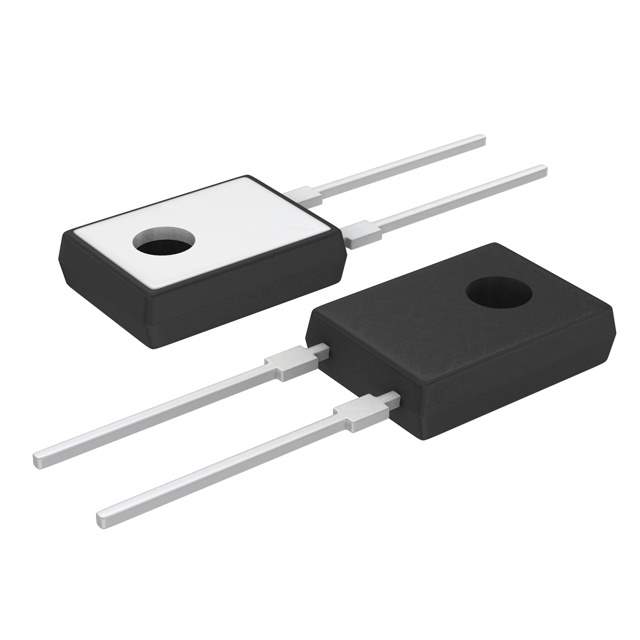

PF1262-27RF1 Real Image
Same model may have multiple batches, images only for reference.

PF1262-27RF1

Part No PF1262-27RF1
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 27 OHM 1% 20W TO126 / 27 Ohms ±1% 20W Through Hole Resistor TO-126-2 Current Sense, Flame Proof, Safety Thin Film
Datasheet
PF1262-27RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Riedon
Series PF1262
Package Tube
Product Status Obsolete
Resistance 27 Ohms
Tolerance ±1%
Power (Watts) 20W
Composition Thin Film
Features Current Sense, Flame Proof, Safety
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 175°C
Package / Case TO-126-2
Supplier Device Package TO-126
Size / Dimension 0.335" L x 0.122" W (8.50mm x 3.10mm)
Height - Seated (Max) 0.472" (12.00mm)
Number of Terminations 2
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.21.0090
California Prop 65 Warning Information
Win Source Part Number 1350099-PF1262-27RF1
Ultra Librarian 3D Model Ultra Librarian PF1262-27RF1 CAD Model

Description

The PF1262 series resistor by Riedon is designed for through hole applications. PF1262 is manufactured by Riedon.

  • Type: Current Sense, Flame Proof, Safety
  • Composition: Thin Film
  • Resistance: 27 Ohms
  • Power (Watts): 20W
  • Package / Case: TO-126-2
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Height - Seated (Max): 0.472" (12.00mm)
  • Size / Dimension: 0.335" L x 0.122" W (8.50mm x 3.10mm)
  • Operating Temperature: -55°C ~ 175°C
  • Lifecycle Status: Obsolete
