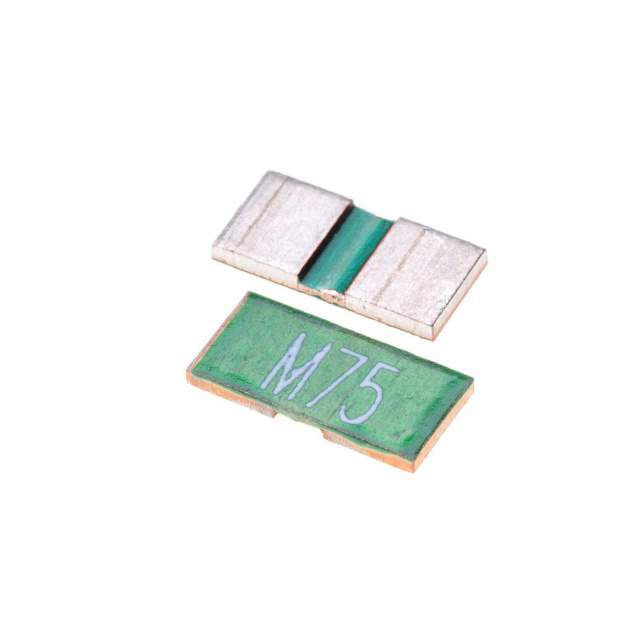

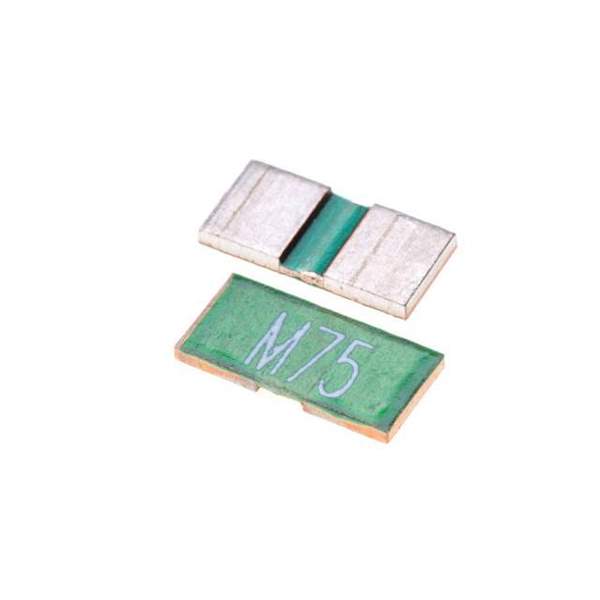

Same model may have multiple batches, images only for reference.

CSR1206-0R001F1

Name: CSR1206-0R001F1
Brand: Riedon
SKU: 1015136
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CSR1206-0R001F1
Manufacturer	Riedon
Catalog	Chip Resistor - Surface Mount
Description	RES 0.001 OHM 1% 1W 1206 / 1 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense, Non-Inductive Metal Element
Datasheet	CSR1206-0R001F1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	Riedon
Series	CSR
Package	Tape & Reel
Product Status	Obsolete
Resistance	1 mOhms
Tolerance	±1%
Power (Watts)	1W
Composition	Metal Element
Features	Current Sense, Non-Inductive
Temperature Coefficient	±50ppm/°C
Temperature Range - Operating	-55°C ~ 170°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0080
Other Names	CSR1206-0R001F1TR,696-1369-6,CSR12060R001F1,CSR1206-0R001F1CT,CSR1206-0R001F1DKR-ND,CSR1206-0R001F1CT-ND,696-1369-1,696-1369-2,CSR1206-0R001F1TR-ND,CSR1206-0R001F1DKR
Standard Package	2,000
Win Source Part Number	1015136-CSR1206-0R001F1
Ultra Librarian 3D Model	Ultra Librarian CSR1206-0R001F1 CAD Model

Description

The Riedon CSR1206-0R001F1 is a high-quality chip resistor that is designed to deliver excellent performance.

Package: 2,000
Tolerance: ±1%
Manufacturer: Riedon
Resistance: 1 mOhms
