Same model may have multiple batches, images only for reference.

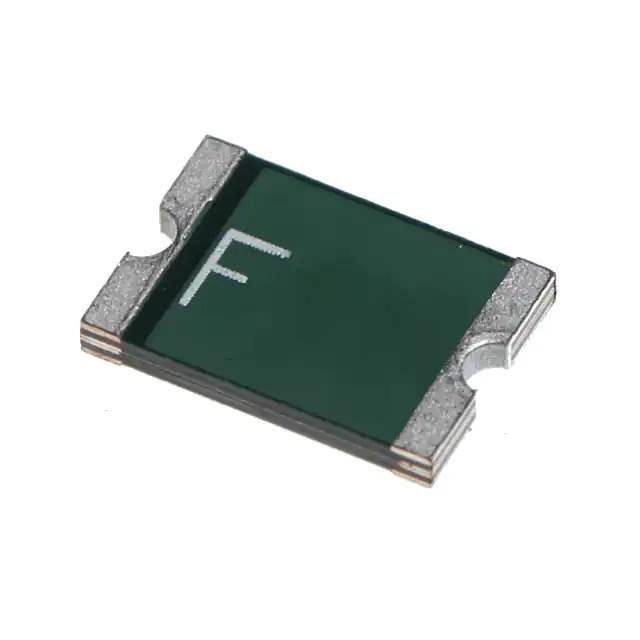

FSMD150-2920-R Real Image
Same model may have multiple batches, images only for reference.

FSMD150-2920-R

Part No FSMD150-2920-R
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - SMD, 2920 SIZE
Datasheet
FSMD150-2920-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FSMD2920
Package Tape & Reel
Product Status Active
Voltage - Max 33V
Current - Hold (Ih) (Max) 1.5 A
Current - Trip (It) 3 A
Current - Max 100 A
Time to Trip 2 s
Resistance - Initial (Ri) (Min) 50 mOhms
Resistance - Post Trip (R1) (Max) 230 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2920 (7351 Metric), Concave
Size / Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.035" (0.90mm)
Approval Agency cUL, TUV, UL
Standard Package 50 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 133503-FSMD150-2920-R
Ultra Librarian 3D Model Ultra Librarian FSMD150-2920-R CAD Model

Description

The 133503-FSMD150-2920-R is a surface mount PTC resettable fuse from the FSMD2920 series.

  • Size: 0.290 inches (7.36mm) L x 0.202 inches (5.12mm) W
  • Maximum Thickness: 0.035 inches (0.90mm)
  • Maximum Voltage: 33V
  • Maximum Current: 100A
  • Initial Resistance: 50 mOhms
  • Post-Trip Resistance: 230 mOhms
  • Time to Trip: 2 seconds
  • Operating Temperature: -40°C to 85°C
  • Package: Tape and Reel
  • Standard Package: 50 pieces
  • Approvals: cUL, TUV, and UL
