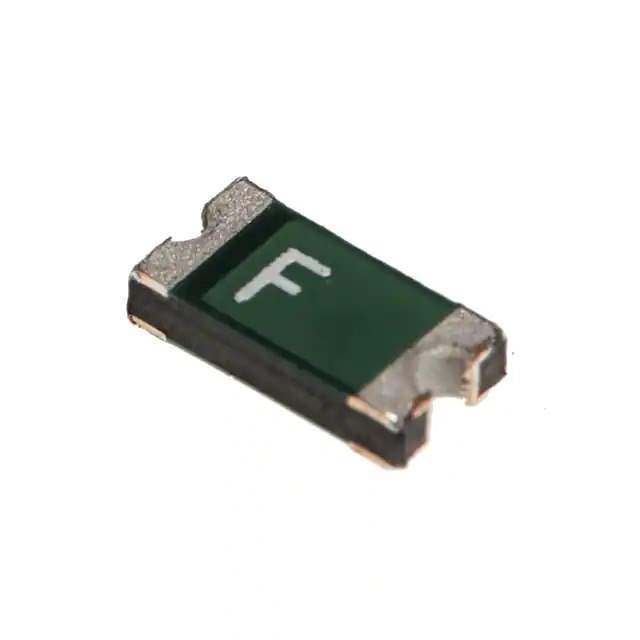

Same model may have multiple batches, images only for reference.

FSMD025-24-1206-R

Name: FSMD025-24-1206-R
Brand: RFE/Fuzetec
SKU: 919399
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FSMD025-24-1206-R
Manufacturer	RFE/Fuzetec
Catalog	PTC Resettable Fuses
Description	RESETTABLE FUSE - SMD, 1206 SIZE / PTC Resettable Fuse 24V 250 mA Ih Surface Mount 1206 (3216 Metric), Concave
Datasheet	FSMD025-24-1206-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	RFE/Fuzetec
Series	FSMD1206
Package	Tape & Reel
Product Status	Active
Voltage - Max	24V
Current - Hold (Ih) (Max)	250 mA
Current - Trip (It)	500 mA
Current - Max	100 A
Time to Trip	80 ms
Resistance - Initial (Ri) (Min)	550 mOhms
Resistance - Post Trip (R1) (Max)	2.3 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric), Concave
Size / Dimension	0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max)	0.030" (0.75mm)
Approval Agency	cUL, TUV, UL
Standard Package	50 pcs
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	919399-FSMD025-24-1206-R
Ultra Librarian 3D Model	Ultra Librarian FSMD025-24-1206-R CAD Model

Alternative Products

Description

The FSMD025-24-1206-R is a PTC resettable fuse designed for circuit protection. With a maximum voltage of 24V and a maximum current of 100 A, this fuse provides reliable protection against overcurrents.

Maximum Voltage: 24V
Maximum Current: 100 A
Time to Trip: 80 ms
Package Size: 1206 (3216 Metric), concave
Mounting Type: Surface Mountable
Operating Temperature: -40°C to 85°C
Initial Resistance: 550 mOhms
Maximum Resistance After Tripping: 2.3 Ohms
Manufacturer: RFE/Fuzetec
Approvals: cUL, TUV, and UL
