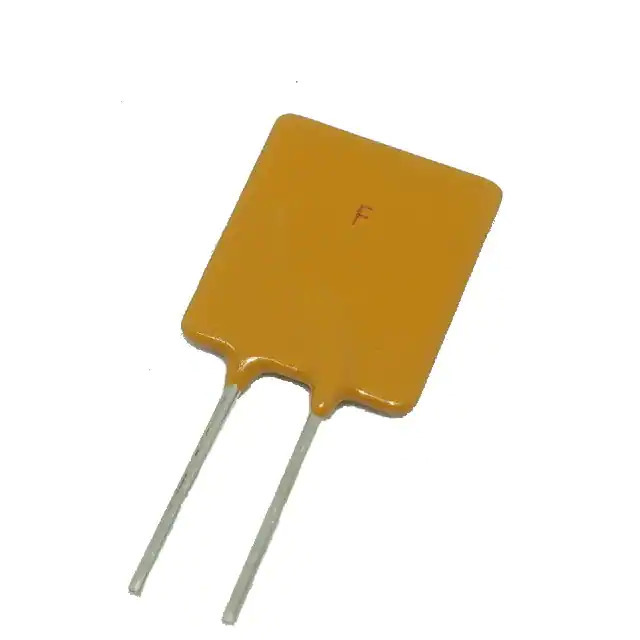

FRU800-30F RFE/Fuzetec
Same model may have multiple batches, images only for reference.

FRU800-30F

Part No FRU800-30F
Manufacturer RFE/Fuzetec
Catalog PTC Resettable Fuses
Description RESETTABLE FUSE - PPTC RADIAL LE / PTC Resettable Fuse 30V 8 A Ih Through Hole Radial, Disc
Datasheet
FRU800-30F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr RFE/Fuzetec
Series FRU
Package Bulk
Product Status Active
Type -
Voltage - Max 30V
Current - Hold (Ih) (Max) 8 A
Current - Trip (It) 16 A
Current - Max 100 A
Time to Trip 18.8 s
Resistance - Initial (Ri) (Min) 5 mOhms
Resistance - Post Trip (R1) (Max) 20 mOhms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.850" L x 0.118" W (21.60mm x 3.00mm)
Height - Seated (Max) 1.150" (29.20mm)
Thickness (Max) -
Lead Spacing 0.402" (10.20mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361765-FRU800-30F
Ultra Librarian 3D Model Ultra Librarian FRU800-30F CAD Model

Description

The FRU800-30F is a PTC resettable fuse manufactured by RFE/Fuzetec.

  • Function: Circuit Protection
  • Current Rating: 100A
  • Maximum Voltage Rating: 30V
  • Hold Current: 8A
  • Trip Current: 16A
  • Time to Trip: 18.8 seconds
  • Initial Resistance: 5mΩ
  • Post-Trip Resistance: 20mΩ
  • Shape: Radial, Disc
  • Size: 0.850" (21.60mm) in length and 0.118" (3.00mm) in width
  • Mounting: Through-Hole
  • Lead Spacing: 0.402" (10.20mm)
  • Compliance: cUL, TUV, and UL
