Same model may have multiple batches, images only for reference.

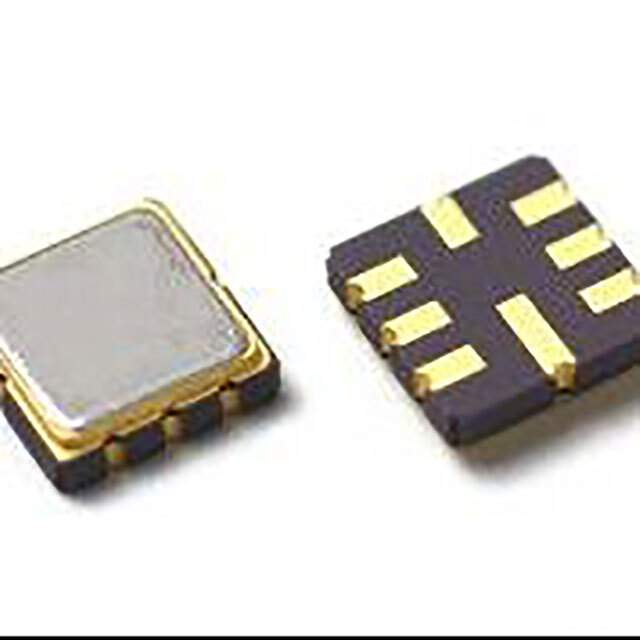

SF2416D Real Image
Same model may have multiple batches, images only for reference.

SF2416D

Part No SF2416D
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2416D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 490MHz
Bandwidth 20MHz
Insertion Loss 2.4dB
Ratings AEC-Q200
Applications General Purpose
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Height (Max) 0.055" (1.40mm)
Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Base Product Number SF2416
Other Names 2410-SF2416DTR,2410-SF2416D,2410-SF2416DTR2
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275812-SF2416D
Ultra Librarian 3D Model Ultra Librarian SF2416D CAD Model

Description

The RFMi SF2416D SAW filter is a high-performance filter designed for general-purpose applications.

  • Insertion Loss: 2.4dB
  • Bandwidth: 20MHz
  • Frequency Center: 490MHz
  • Package: 8-SMD, no-lead package
  • Dimension: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Packaging: Tape and reel (TR)
  • AEC-Q200: Yes
  • Maximum Height: 0.055" (1.40mm)
