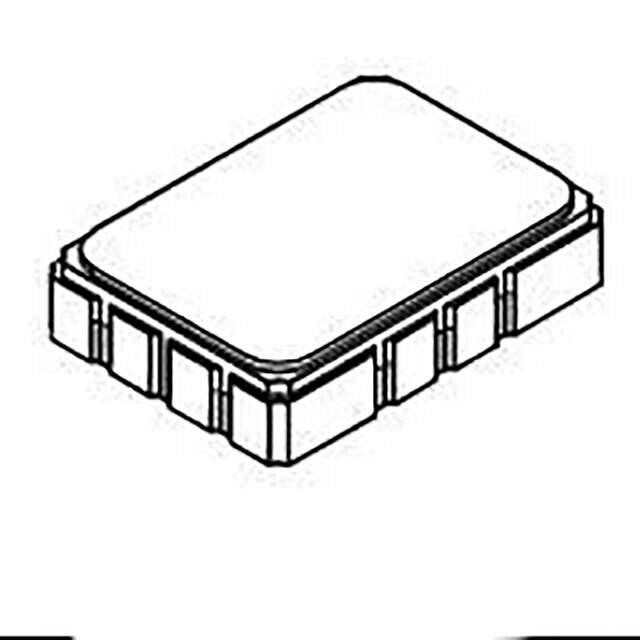

SF2189A Real Image
Same model may have multiple batches, images only for reference.

SF2189A

Part No SF2189A
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2189A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 140MHz
Bandwidth 33MHz, 35MHz, 42.4MHz
Insertion Loss 11.3dB
Ratings AEC-Q200
Applications IF
Mounting SMD (SMT)
Package / Case 12-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Dimension 0.524" L x 0.256" W (13.31mm x 6.50mm)
Base Product Number SF2189
Other Names 2410-SF2189ATR,2410-SF2189ATR2,2410-SF2189A
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275852-SF2189A
Ultra Librarian 3D Model Ultra Librarian SF2189A CAD Model

Description

The SF2189A is a SAW filter manufactured by RFMi.

  • Category: filters
  • Bandwidth: 33MHz, 35MHz, and 42.4MHz
  • Insertion Loss: 11.3dB
  • Frequency Center: 140MHz
  • Suitable for: use in IF applications
  • Standard Package: 1,000
  • Rated: AEC-Q200
  • Height: 0.079 inches (2.00mm)
  • RoHS compliant: Yes
  • ECCN: EAR99
  • Packaging: Tape & Reel (TR), Tape & Reel (TR), and Bag
