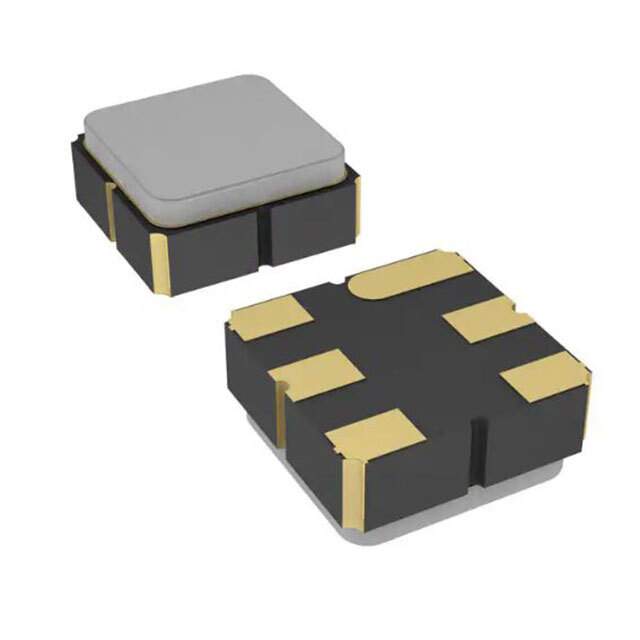

Same model may have multiple batches, images only for reference.

RF3336E

Name: RF3336E
Brand: RF Monolithics, Inc
SKU: 1383319
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RF3336E
Manufacturer	RF Monolithics, Inc
Catalog	SAW Filters
Description	CRF,SM,868.350 MHZ / 868.35MHz Frequency Wireless RF SAW Filter (Surface Acoustic Wave) 2.5dB 650kHz Bandwidth 6-SMD, No Lead
Datasheet	RF3336E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>SAW Filters
Mfr	RF Monolithics, Inc
Series	-
Package	Tape & Reel (TR)Tape & Reel (TR)Bag
Frequency - Center	868.35MHz
Bandwidth	650kHz
Insertion Loss	2.5dB
Ratings	AEC-Q200
Applications	Wireless
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Height (Max)	0.054" (1.38mm)
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Base Product Number	RF3336
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.60.0060
Standard Package	3,000 pcs
Win Source Part Number	1383319-RF3336E
Ultra Librarian 3D Model	Ultra Librarian RF3336E CAD Model

Description

The RF3336E is a surface acoustic wave (SAW) filter from RF Monolithics, Inc. It is designed for wireless applications and operates @ a center frequency of 868.35MHz.

Application: Wireless
Center Frequency: 868.35MHz
Bandwidth: 650kHz
Insertion Loss: 2.5dB
Package: 6-SMD, No Lead
Size: 3.00mm x 3.00mm
Mounting Type: Surface Mount
Height: 1.38mm
AEC-Q200: Rated
Operating Temperature: -40°C to 85°C
