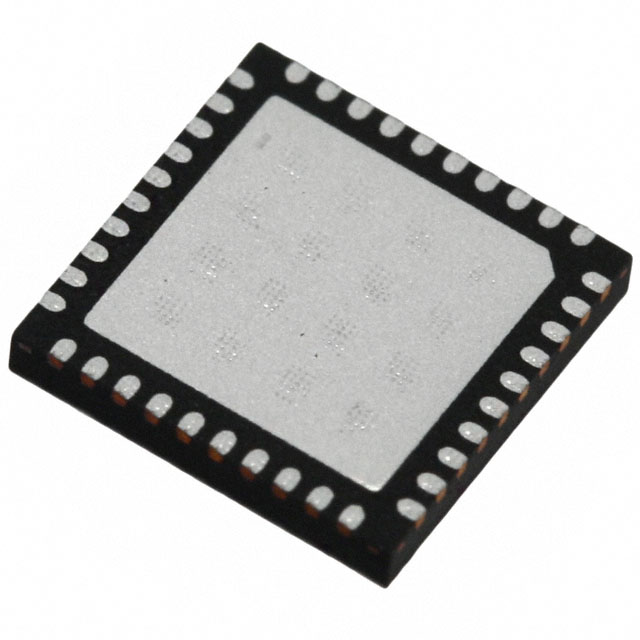

Same model may have multiple batches, images only for reference.
ML5805DM-T RF Micro Devices
Same model may have multiple batches, images only for reference.

ML5805DM-T

Part No ML5805DM-T
Manufacturer RF Micro Devices
Catalog RF Transceiver ICs
Description IC RF TXRX ISM>1GHZ 40-VFQFN
Datasheet
ML5805DM-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer RF Micro Devices
Packaging Reel - TR
Status Obsolete(EOL)
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation FSK
Frequency 5.8GHz
Data Rate (Max) 2.048Mbps
Power - Output 21dBm
Sensitivity -97dBm
Serial Interfaces SPI
Supply Voltage - Operating 2.8 V to 3.6 V
Current - Receiving 69mA
Current - Transmitting 77mA
Temperature Range - Operating -10°C to 60°C
Dimension 40-VFQFN Exposed Pad
Win Source Part Number 116479-ML5805DM-T
Ultra Librarian 3D Model Ultra Librarian ML5805DM-T CAD Model

Description

The RF Micro Devices ML5805DM-T is an obsolete (EOL) electronic component that operates in the frequency range of 5.8GHz. It is a TxRx only type of product with a data rate of 2.048Mbps and a sensitivity of -97dBm. The product has a Win Source Part Number of 116479-ML5805DM-T and is packaged in a Reel-TR. The RF family/standard for this product is General ISM > 1GHZ. The product has a modulation of FSK and serial interfaces of SPI. The product has a current-receiving of 69mA and a current-transmitting of 77mA. The temperature range for operating this product is -10°C to 60°C.
