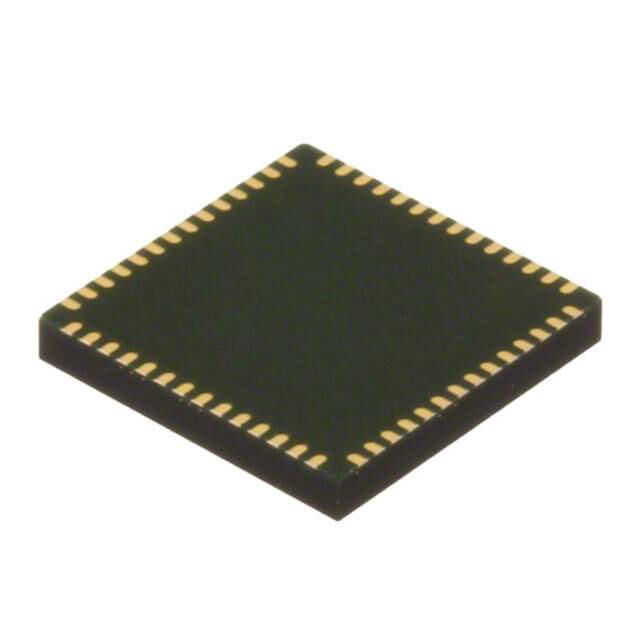

ZM5101A-CME3R Real Image
Same model may have multiple batches, images only for reference.

ZM5101A-CME3R

Part No ZM5101A-CME3R
Manufacturer Sigma Designs Inc.
Catalog RF Transceiver ICs
Description RF MODULE ZM5101 / RF Transceiver FSK/GFSK 3.3V 56-Pin LGA T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Sigma Designs Inc.
Series Z-Wave
Packaging Reel package
Type TxRx + MCU
RF Family/Standard Z-Wave
Protocol Z-Wave
Frequency 868MHz, 908MHz, 921MHz
Data Rate (Maximum) 100kbps
Power - Output 5dBm
Sensitivity -104dBm
Memory Size 128kB Flash, 16kB SRAM
Serial Interfaces SPI, UART
GPIO 30
Operating Supply Voltage 2.3 V ~ 3.6 V
Current - Receiving 32mA
Current - Transmitting 32mA
Package 56-QFN
Win Source Part Number 800383-ZM5101A-CME3R
Popularity Medium
Supply and Demand Status Limited
Family Name ZM5101A
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ZM5101A-CME3R CAD Model

Description

Sigma Designs Inc. ZM5101A-CME3R Z-Wave series TxRx + MCU has a frequency of 868MHz, 908MHz, 921MHz.

  • Frequency: 868MHz, 908MHz, 921MHz
  • Operating Supply Voltage: 2.3 V to 3.6 V
  • Protocol: Z-Wave
  • Package: 56-QFN
  • Memory Size: 128kB Flash, 16kB SRAM
  • Power Output: 5dBm
  • Sensitivity: -104dBm
  • Current (Receiving): 32mA
  • RF Family/Standard: Z-Wave
  • Serial Interfaces: SPI and UART
  • GPIO: 30
  • Data Rate (Maximum): 100kbps
  • Applications: RF/IF and RFID
  • Estimated EOL Date: 2027
