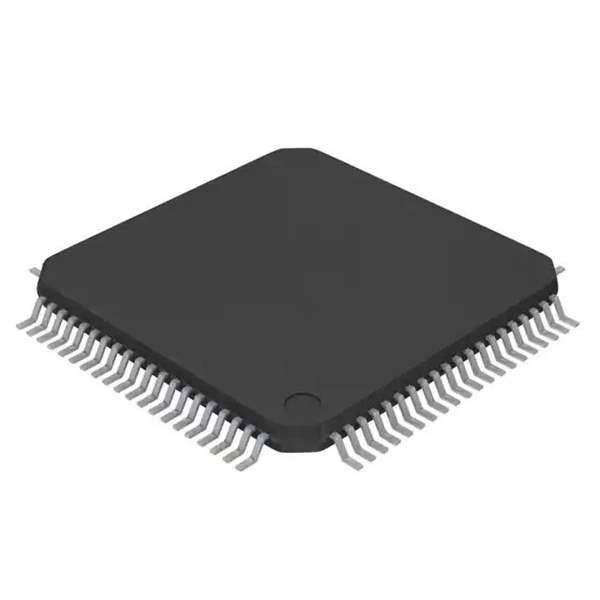

UPD78F1155AGK-GAK-AX Renesas Electronics America
Same model may have multiple batches, images only for reference.

UPD78F1155AGK-GAK-AX

Part No UPD78F1155AGK-GAK-AX
Manufacturer Renesas Electronics America
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 192KB FLASH 80LQFP / 78K/0R 78K0R/Kx3 Microcontroller IC 16-Bit 20MHz 192KB (192K x 8) FLASH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Renesas Electronics America Inc
Series 78K0R/Kx3
Package Tray
Product Status Active
Core Processor 78K/0R
Core Size 16-Bit
Speed 20MHz
Connectivity 3-Wire SIO, I²C, LINbus, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 65
Program Memory Size 192KB (192K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 10K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 8x10b; D/A 2x8b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 80-LQFP
Base Product Number UPD78F1155
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1355794-UPD78F1155AGK-GAK-AX
Ultra Librarian 3D Model Ultra Librarian UPD78F1155AGK-GAK-AX CAD Model

Description

The 1355794-UPD78F1155AGK-GAK-AX is an active microcontroller IC from the 78K0R/Kx3 series manufactured by Renesas Electronics America Inc.

  • Series: 78K0R/Kx3
  • Package / Case: 80-LQFP
  • Voltage - Supply: 1.8V ~ 5.5V
  • Speed: 20MHz
  • Number of I/O: 65
  • Core Processor: 16-Bit 78K/0R
  • Connectivity: 3-Wire SIO, I²C, LINbus, UART/USART
  • Program Memory Size: 192KB
  • Program Memory Type: FLASH
  • Peripherals: DMA, LVD, POR, PWM, WDT
  • Operating Temperature: -40°C ~ 85°C
