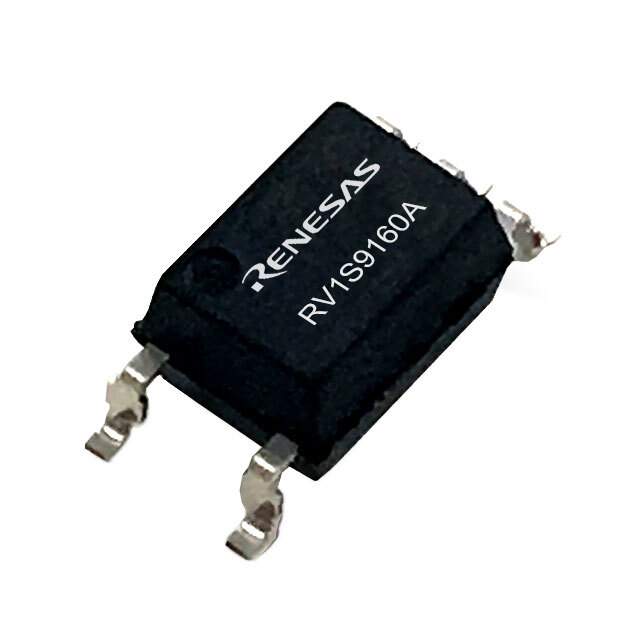

RV1S9160ACCSP-100V#SC0

Name: RV1S9160ACCSP-100V#SC0
Brand: Renesas Electronics America
SKU: 1089422
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RV1S9160ACCSP-100V#SC0
Manufacturer	Renesas Electronics America
Catalog	Optoisolators - Logic Output
Description	HI-SPEED OPTOCPLR SO-5 / Logic Output Optoisolator 15Mbps CMOS 3750Vrms 1 Channel 50kV/µs CMTI 5-SO
Datasheet	RV1S9160ACCSP-100V#SC0 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators>Optoisolators - Logic Output
Mfr	Renesas Electronics America Inc
Package	Tray
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	50kV/µs
Output Type	CMOS
Current - Output / Channel	10 mA
Data Rate	15Mbps
Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Rise / Fall Time (Typ)	5ns, 5ns
Voltage - Forward (Vf) (Typ)	1.55V
Current - DC Forward (If) (Max)	6mA
Voltage - Supply	2.7V ~ 5.5V
Temperature Range - Operating	-40°C ~ 125°C
Mounting	SMD (SMT)
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO
Base Product Number	RV1S9160
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Other Names	-1161-RV1S9160ACCSP-100V#SC0
Standard Package	20
Win Source Part Number	1089422-RV1S9160ACCSP-100V#SC0
Ultra Librarian 3D Model	Ultra Librarian RV1S9160ACCSP-100V#SC0 CAD Model

Alternative Products

Description

The Renesas RV1S9160ACCSP-100V#SC0 is a high-quality optoisolator designed for use in various electronic devices.

Data Rate: 15Mbps
Number of Channels: 1
Voltage Isolation: 3750Vrms
Common Mode Transient Immunity: 50kV/μs
Mounting Type: Surface-Mount
RoHS Compliance: RoHS compliant
Temperature Range: -40°C to 125°C
REACH Regulations: Unaffected
