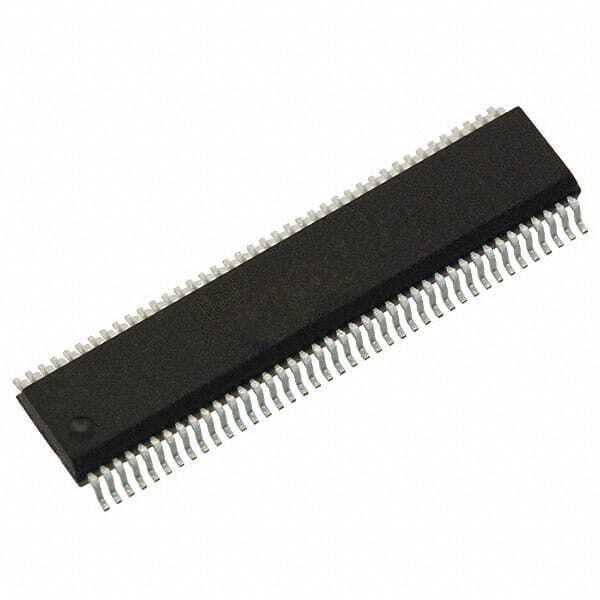

The QS34X245Q3G8 is a high-performance CMOS device manufactured by Renesas Electronics America. It serves as a 32-bit bus switch with a low on-resistance, designed for high-speed data transfer applications. Its primary function is to facilitate bidirectional data flow with minimal signal degradation.

Applications

• High-Speed Data Transfer
• Bus Isolation
• Level Translation
• Multiplexing Applications
• Memory Interfacing

Features

• 32-Bit Bus Switch: Accommodates wide data buses for parallel data transfer.
• Low On-Resistance: Minimizes signal attenuation and distortion, ensuring high signal integrity.
• High Bandwidth: Supports high-frequency signals, enabling fast data transmission rates.
• Bidirectional Data Flow: Allows data to flow in either direction, providing flexibility in system design.
• CMOS Technology: Offers low power consumption and high noise immunity.
• TTL-Compatible Inputs: Simplifies interfacing with TTL logic devices.

Benefits

• Improved Data Throughput: The low on-resistance and high bandwidth allow for high-speed data transfer, improving overall system performance.
• Enhanced Signal Integrity: Minimizes signal degradation, ensuring accurate data transmission.
• Reduced Power Consumption: CMOS technology minimizes power consumption, making it suitable for power-sensitive applications.
• Increased System Reliability: High noise immunity improves system reliability in noisy environments.
• Simplified System Design: TTL-compatible inputs and bidirectional data flow simplify system design and integration.

Additional Details

The QS34X245Q3G8 is available in various package options to meet different application requirements. It is designed to minimize signal reflections and crosstalk, ensuring high signal integrity in high-speed systems. Refer to the Renesas Electronics America datasheet for detailed specifications, including voltage range, operating temperature, and specific on-resistance values.
