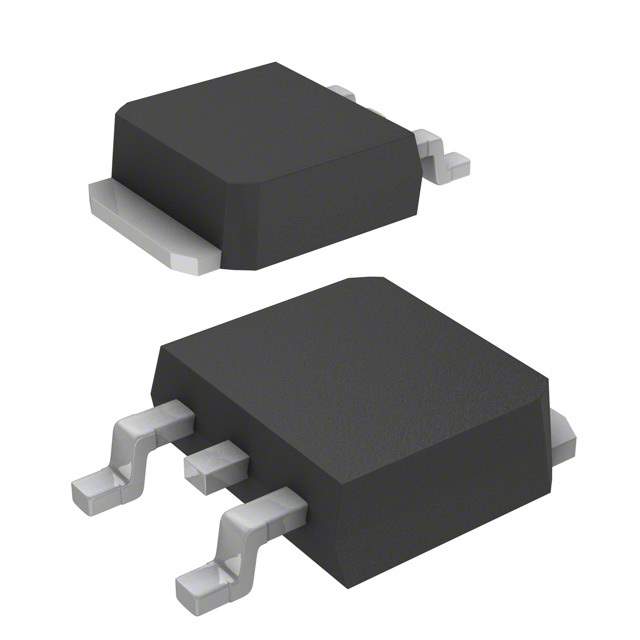

The BCR5AS-12B-T13 is a triac manufactured by Renesas Electronics America. Triacs are semiconductor devices widely used as AC switches for controlling power in various applications. They offer a solid-state alternative to mechanical relays, providing faster switching speeds and longer lifespans. This specific triac is designed for lower current applications.

Applications:

• Low-power light dimmers: Controlling the brightness of lamps in residential and commercial settings.
• Small motor speed control: Adjusting the speed of fractional horsepower AC motors.
• Temperature control: Switching heating elements in small appliances and systems.
• Solid-state relays (SSRs): As the switching element in low-current SSRs.
• General AC load switching: Switching various AC loads in electronic devices and appliances.

Features:

• Low on-state voltage: Minimizes power dissipation when conducting, improving efficiency.
• High blocking voltage: Withstands high voltage in the off state, ensuring safe operation. (Refer to datasheet for specific value).
• Gate trigger current: Requires a specific current to trigger conduction via the gate terminal.
• Surface mount package: Designed for automated assembly on printed circuit boards.
• Compact size: Allows for integration into space-constrained applications.

Benefits:

• Energy efficiency: Low on-state voltage minimizes power loss, improving overall efficiency.
• Fast switching speed: Enables rapid switching of AC power compared to mechanical relays.
• Long lifespan: Solid-state design offers a long operational life with minimal maintenance.
• Compact design: Allows for miniaturization of electronic circuits.
• Reliable performance: Provides consistent and reliable AC switching.

Additional Details:

Detailed specifications, such as blocking voltage, on-state current, gate trigger current, holding current, and operating temperature range, can be found in the Renesas Electronics America datasheet for the BCR5AS-12B-T13. The package style significantly influences thermal performance and PCB layout considerations. Consult the datasheet for precise application and design guidelines to ensure optimal performance and reliability. Use appropriate gate drive circuitry to ensure proper triggering and prevent damage to the triac. Ensure adequate heatsinking, if required, to prevent overheating during operation at higher currents. The T13 suffix typically refers to the packaging type, such as tape and reel. Always refer to the manufacturer's datasheet for the most accurate and up-to-date information.
