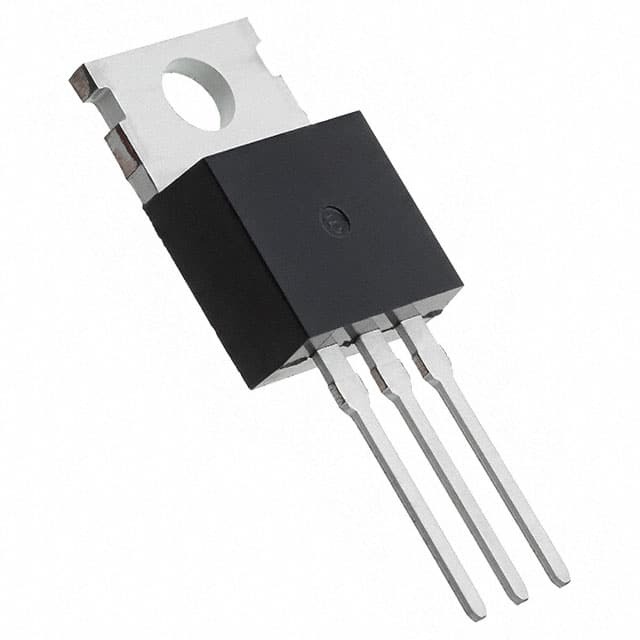

BCR16CM-12LB#BB0 Renesas Electronics America
Same model may have multiple batches, images only for reference.

BCR16CM-12LB#BB0

Part No BCR16CM-12LB#BB0
Manufacturer Renesas Electronics America
Catalog Triacs
Description TRIAC 600V 16A / TRIAC Standard 600 V 16 A Through Hole TO-220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - TRIACs
Mfr Renesas Electronics America Inc
Package Tube
Product Status Obsolete
Triac Type Standard
Voltage - Off State 600 V
Current - On State (It (RMS)) (Max) 16 A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm) 170A @ 60Hz
Current - Gate Trigger (Igt) (Max) 30 mA
Configuration Single
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number BCR16
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.30.0080
Standard Package 25
Win Source Part Number 1165476-BCR16CM-12LB#BB0
Ultra Librarian 3D Model Ultra Librarian BCR16CM-12LB#BB0 CAD Model

Description

The BCR16CM-12LB#BB0 from Renesas is a standard triac that comes with a voltage-off state of 600 V and a voltage-gate trigger (Vgt) of 1.5 V.

  • Current-Gate Trigger (Igt): 30 mA
  • Current-On State (It (RMS)): 16 A
  • Current-Non Rep. Surge: 170A @ 60Hz
  • Mounting Type: Through-hole
  • Package/Case: TO-220-3
  • Operating Temperature: -40°C to 150°C (TJ)
  • Status: Obsolete
  • ECCN: EAR99
