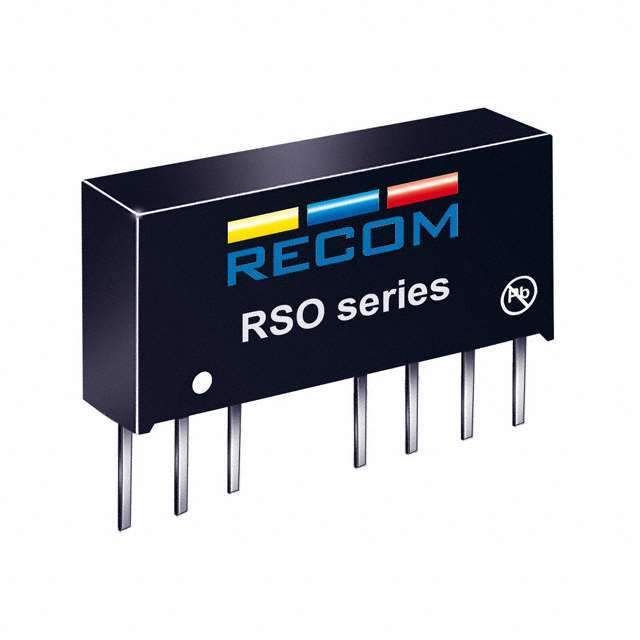

Same model may have multiple batches, images only for reference.

RSO-2409SZ/H3

Name: RSO-2409SZ/H3
Brand: Recom Power
SKU: 793394
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	RSO-2409SZ/H3
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 1W 9-36VIN 09VOUT / Module DC-DC 24VIN 1-OUT 9V 0.111A 1W Medical 7-Pin SIP Module Tube
Datasheet	RSO-2409SZ/H3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Recom Power
Series	ECONOLINE RSO
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	9V
Voltage Input MAX	36V
Voltage - Output 1	9V
Current - Output (Maximum)	111mA
Power (Watts)	1W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial), Medical
Features	Remote On/Off, SCP
Operating Temperature Range	-40°C ~ 85°C
Efficiency	81%
Mounting Style	Through Hole
Package	8-SIP Module, 7 Leads
Dimension	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Control Features	Enable, Active Low
Win Source Part Number	793394-RSO-2409SZ/H3
Popularity	Medium
Supply and Demand Status	Limited
Family Name	RSO-2409SZ
Introduction Date	May 19, 2015
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	2030
Ultra Librarian 3D Model	Ultra Librarian RSO-2409SZ/H3 CAD Model

Alternative Products

Description

The Recom Power ECONOLINE RSO is an isolated module with a power rating of 1W.

Package: 8-SIP Module (7 leads)
Voltage Isolation: 3kV (3000V)
Features: Remote On/Off, SCP
Efficiency: 81%
Operating Temperature Range: -40°C to 85°C
Applications: ITE (Commercial), Medical
Voltage Output: 9V
Maximum Output Current: 111mA
Enable Control: Active Low
Package Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Series: ECONOLINE RSO
Availability: Until 2030
