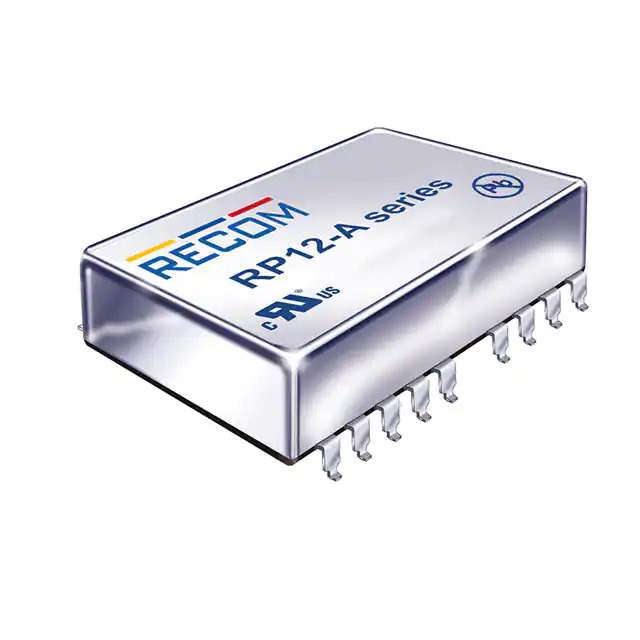

Same model may have multiple batches, images only for reference.

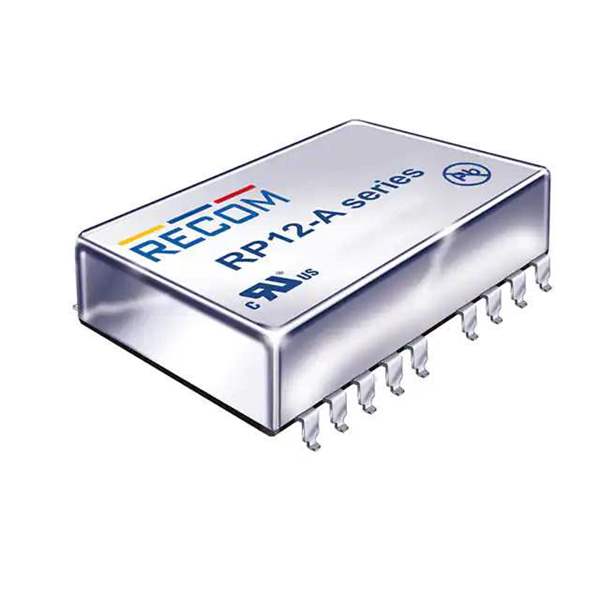

RP12-2412DA Real Image
Same model may have multiple batches, images only for reference.

RP12-2412DA

Part No RP12-2412DA
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 12W
Datasheet
RP12-2412DA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Recom Power
Series POWERLINE RP12-A (12W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 500mA, 500mA
Power (Watts) 12 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 24-DIP Module, 9 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Control Features Enable, Active High
Base Product Number RP12-2412
Standard Package 7 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 660937-RP12-2412DA
Ultra Librarian 3D Model Ultra Librarian RP12-2412DA CAD Model

Description

The RP12-2412DA is an isolated module DC-DC converter designed for power supplies in commercial applications.

  • Series: POWERLINE RP12-A (12W)
  • Features: Remote on/off, OCP (Over Current Protection), OVP (Over Voltage Protection), and SCP (Short Circuit Protection)
  • Application: ITE (Commercial)
  • Power: 12W
  • Output Voltages: 12V and -12V
  • Maximum Output Current: 500mA for each output
  • Input Voltage Range: 18V to 36V
  • Mounting: Through-hole
  • Package: 24-DIP module package with 9 leads
  • Operating Temperature: -40°C to 85°C
  • Status: Active
  • Standard Package: 7 pieces
  • REACH: Compliant
  • ECCN: EAR99
