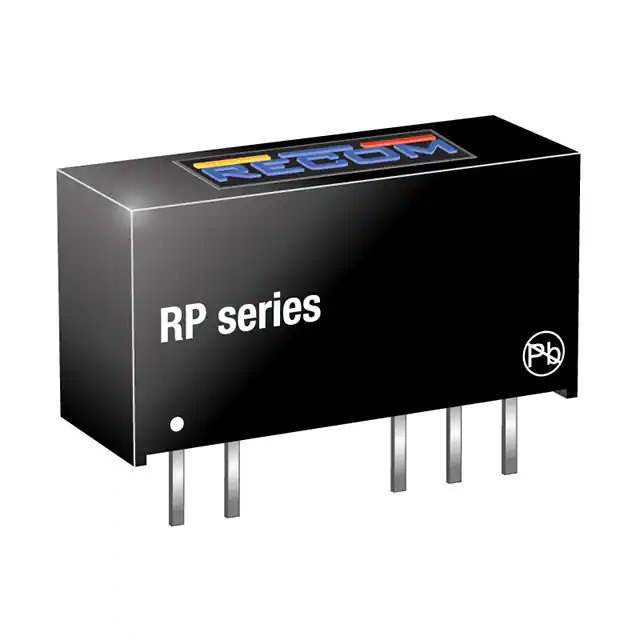

Same model may have multiple batches, images only for reference.

RP-1505S

Name: RP-1505S
Brand: Recom Power
SKU: 660954
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RP-1505S
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 1W
Datasheet	RP-1505S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Recom Power
Series	ECONOLINE RP (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	13.5V
Voltage - Input (Max)	16.5V
Voltage - Output 1	5V
Current - Output (Max)	200mA
Power (Watts)	1 W
Voltage - Isolation	5.2 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	72%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 4 Leads
Size / Dimension	0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
Base Product Number	RP-1505
Standard Package	25 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	660954-RP-1505S
Ultra Librarian 3D Model	Ultra Librarian RP-1505S CAD Model

Alternative Products

Description

The 660954-RP-1505S is a 1W isolated module DC-DC converter from the ECONOLINE RP series.

Size: 0.77" L x 0.28" W x 0.40" H
Voltage Isolation: 5.2 kV
Input Voltage Range: 13.5V to 16.5V
Output Voltage: 5V
Maximum Output Current: 200mA
Efficiency: 72%
Protection: Short circuit protection (SCP)
Applications: ITE (Commercial) and Medical
Mounting Type: Through-hole
Package: 7-SIP module with 4 leads
Operating Temperature Range: -40°C to 85°C
Manufacturer: Recom Power
Status: Active
