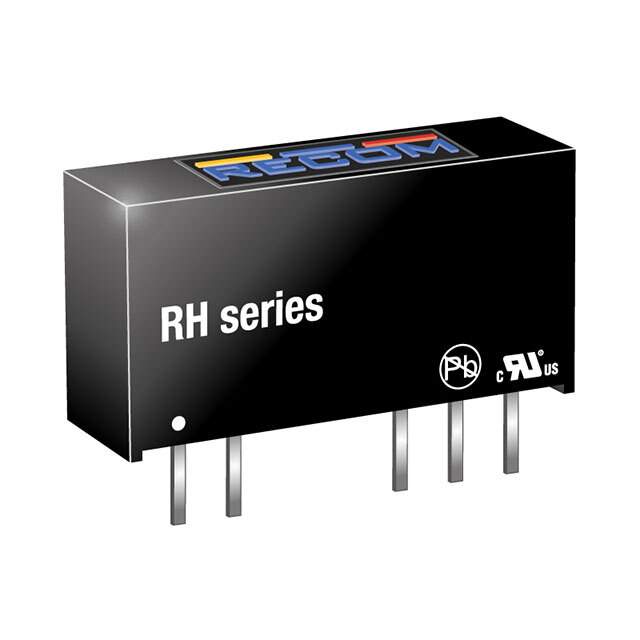

Same model may have multiple batches, images only for reference.

RH-0515D/P

Name: RH-0515D/P
Brand: Recom Power
SKU: 1320699
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RH-0515D/P
Manufacturer	Recom Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Datasheet	RH-0515D/P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Recom Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	33mA, 33mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	84%
Mounting	Through Hole
Case / Package	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Base Product Number	RH-0515
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	RH0515D/P,10011556
Standard Package	25
Win Source Part Number	1320699-RH-0515D/P
Ultra Librarian 3D Model	Ultra Librarian RH-0515D/P CAD Model

Alternative Products

Description

The RH-0515 is an isolated module power supply designed for ITE (Commercial) and Medical applications.

Voltage Isolation: 3 kV
Outputs: 2
Maximum Output Current: 33mA each
Input Voltage: 4.5V to 5.5V
Output Voltage: 15V and -15V
Efficiency: 84%
Mounting: Through Hole
Package: 7-SIP module, 5 leads
Operating Temperature: -40°C to 90°C
Standard Package: 25 units
Cross-Reference: RH0515D/P and 10011556
