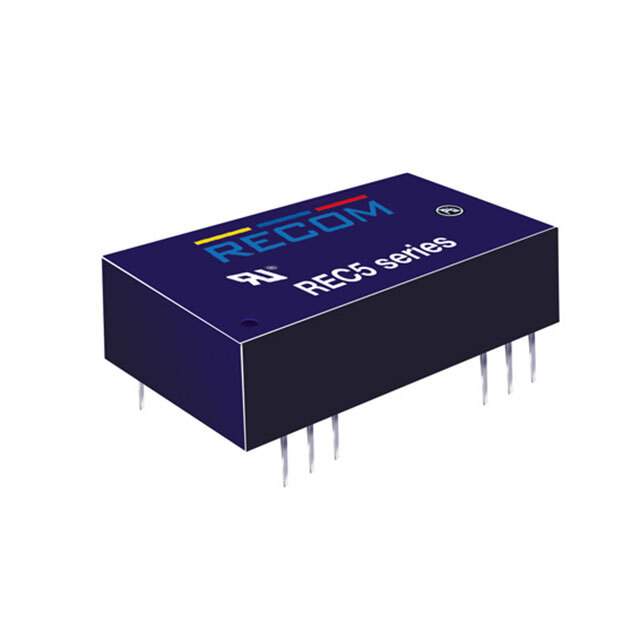

REC5-0505SRW/H4/A Real Image
Same model may have multiple batches, images only for reference.

REC5-0505SRW/H4/A

Part No REC5-0505SRW/H4/A
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 5W SGL 5V OUT DIP24 / Module DC-DC 5VIN 1-OUT 5V 1A 5W Medical 8-Pin PDIP Tube
Datasheet
REC5-0505SRW/H4/A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Recom Power
Series ECONOLINE REC5
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 9V
Voltage - Output 1 5V
Current - Output (Maximum) 1A
Power (Watts) 5W
Voltage - Isolation 4kV (4000V)
Applications ITE (Commercial), Medical
Features SCP
Operating Temperature Range -40°C ~ 75°C
Efficiency 72%
Mounting Style Through Hole
Package 24-DIP Module, 8 Leads
Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Win Source Part Number 793078-REC5-0505SRW/H4/A
Popularity Medium
Supply and Demand Status Limited
Family Name REC5-0505SRW
Introduction Date November 13, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian REC5-0505SRW/H4/A CAD Model

Description

The Recom Power ECONOLINE REC5 series is a 5W isolated module from Recom Power.

  • Voltage Isolation: 4kV
  • Package: 24-DIP (8 leads)
  • Features: SCP
  • Applications: ITE (Commercial), Medical
  • Operating Temperature: -40°C to 75°C
  • Package Dimensions: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
  • Input Voltage Range: 4.5V to 9V
  • Output Voltage: 5V
  • Efficiency: 72%
  • Family Name: REC5-0505SRW
  • Alternative Parts: JCA0605S05, AM6G-0505SH30Z, AM4T-0505SZ, CC6-0505SF-E
  • Introduction Date: November 13, 2006
  • ECCN: EAR99
  • Country of Origin: Taiwan
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
