Same model may have multiple batches, images only for reference.

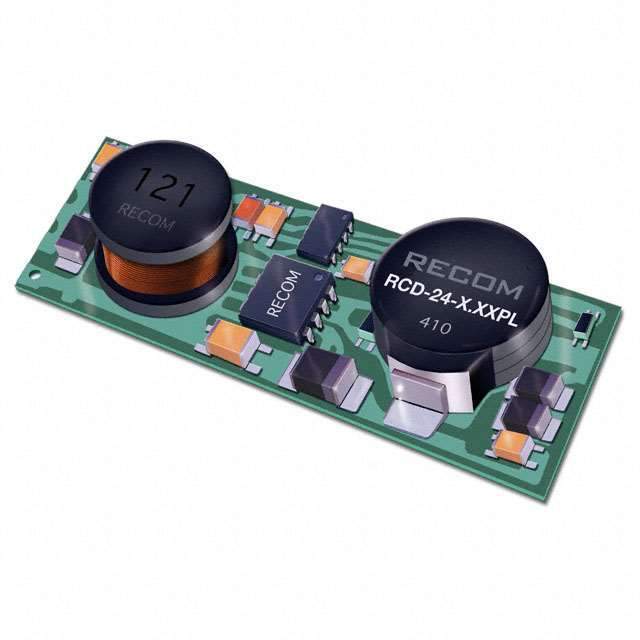

RCD-24-0.70/PL/A-R Real Image
Same model may have multiple batches, images only for reference.

RCD-24-0.70/PL/A-R

Part No RCD-24-0.70/PL/A-R
Manufacturer Recom Power
Catalog Board Mount LED Drivers
Description LED SUPPLY CC BUCK 2-35V 700MA / AC/DC LED Power Supply 24.5W Single 6-Pin SMD
Datasheet
RCD-24-0.70/PL/A-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Recom Power
Series LIGHTLINE RCD-24-PL
Type Constant Current
Topology Buck
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 36V
Voltage - Output 2 ~ 35 V
Current - Output (Maximum) 700mA
Power (Watts) 25W
Dimming Analog, PWM
Features Remote On/Off, OTP, SCP
Operating Temperature Range -40°C ~ 75°C
Efficiency 96%
Mounting SMD
Package 6-SMD
Dimension 1.22" L x 0.45" W x 0.26" H (31.0mm x 11.4mm x 6.6mm)
Packaging Reel package
Approvals EN
Weight 0.004 lb (1.81g)
Win Source Part Number 793056-RCD-24-0.70/PL/A-R
Popularity Medium
Supply and Demand Status Limited
Family Name RCD-24-0.70/PL
Introduction Date October 29, 2010
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian RCD-24-0.70/PL/A-R CAD Model

Description

The RCD-24-0.70/PL/A-R is a constant current power supply used in board mount applications. It has a power output of 25W and a voltage output of 2~35V.

  • Power Output: 25W
  • Voltage Output: 2~35V
  • Topology: Buck
  • Dimming: Analog, PWM
  • Current Output: 700mA
  • Temperature Range: -40°C to 75°C
  • Mounting: Surface Mount Technology (SMT)
  • Package/Case: 6-SMD
  • RoHS Compliant: Yes
  • REACH Unaffected: Yes
  • Efficiency: 96%
  • Approvals: EN
