Same model may have multiple batches, images only for reference.

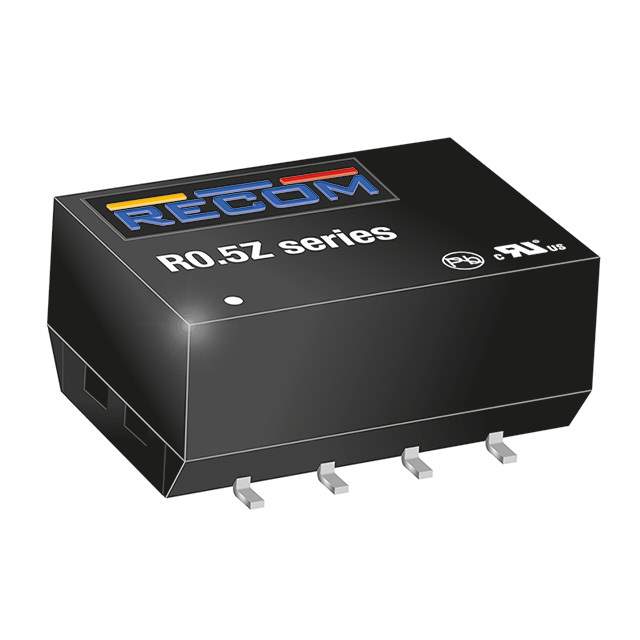

R0.5Z-0505 Real Image
Same model may have multiple batches, images only for reference.

R0.5Z-0505

Part No R0.5Z-0505
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 500MW / Isolated Module DC DC Converter 1 Output 5V 100mA 4.75V - 5.25V Input
Datasheet
R0.5Z-0505 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series ECONOLINE R0.5Z (0.5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.75V
Voltage - Input (Max) 5.25V
Voltage - Output 1 5V
Current - Output (Max) 100mA
Power (Watts) 500 mW
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 50%
Mounting SMD (SMT)
Package / Case 10-SMD Module, 6 Leads
Dimension 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm)
Other Names R0.5Z-0505,R0.5Z0505,945-1733-5,10014344,R05Z0505
Standard Package 33
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237387-R0.5Z-0505
Ultra Librarian 3D Model Ultra Librarian R0.5Z-0505 CAD Model

Description

The ECONOLINE R0.5Z (0.5W) is an isolated module DC-DC converter, designed for ITE (Commercial) applications.

  • Package: 10-SMD module with 6 leads
  • Power Output: 500mW
  • Voltage Isolation: 1kV
  • Output: Single
  • Maximum Output Current: 100mA
  • Input Voltage Range: 4.75V to 5.25V
  • Output Voltage: 5V
  • Short Circuit Protection: Yes (SCP)
  • Efficiency: 50%
  • Operating Temperature Range: -40°C to 100°C
  • Manufacturer: Recom Power
  • Other Names: R0.5Z-0505, R0.5Z0505, 945-1733-5, 10014344, R05Z0505
