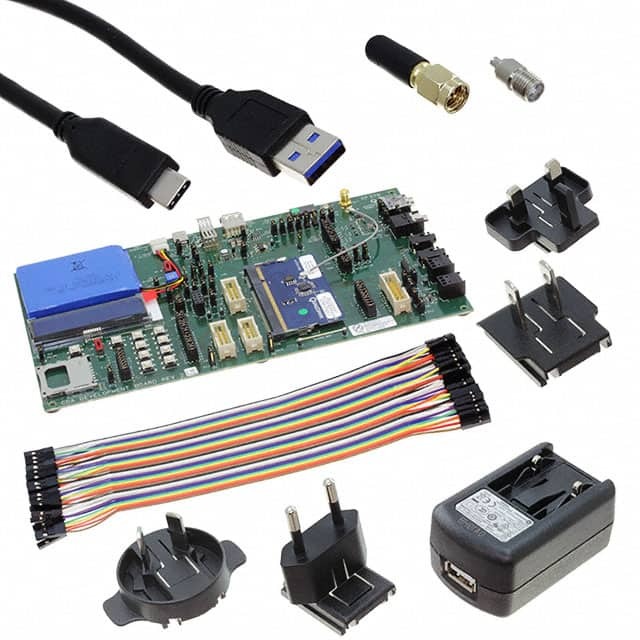

DK-QCC3020-VFBGA90-A-0 Qualcomm
Same model may have multiple batches, images only for reference.

DK-QCC3020-VFBGA90-A-0

Part No DK-QCC3020-VFBGA90-A-0
Manufacturer Qualcomm
Catalog RF Evaluation and Development Kits, Boards
Description DEV KIT, DK-QCC3020-VFBGA90-A-0,  /  QCC3020 series Transceiver; Bluetooth® 5 Evaluation Board
Datasheet
DK-QCC3020-VFBGA90-A-0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>RF Evaluation and Development Kits, Boards
Mfr Qualcomm
Package Box
Type Transceiver; Bluetooth® 5
Frequency 2.4GHz
For Use With/Related Products QCC3020
Supplied Contents Board(s)
Base Product Number DK-QCC3020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A002A1
HTSUS 8517.62.0090
Standard Package 1
Win Source Part Number 1115163-DK-QCC3020-VFBGA90-A-0
Ultra Librarian 3D Model Ultra Librarian DK-QCC3020-VFBGA90-A-0 CAD Model

Description

The DK-QCC3020-VFBGA90-A-0 is a development board kit from Qualcomm that is designed for use with the QCC3020 transceiver with Bluetooth 5.

  • Win Source Part Number: 1115163-DK-QCC3020-VFBGA90-A-0
  • Frequency: 2.4GHz
  • Supplied With: Board(s)
  • REACH Status: Unaffected
