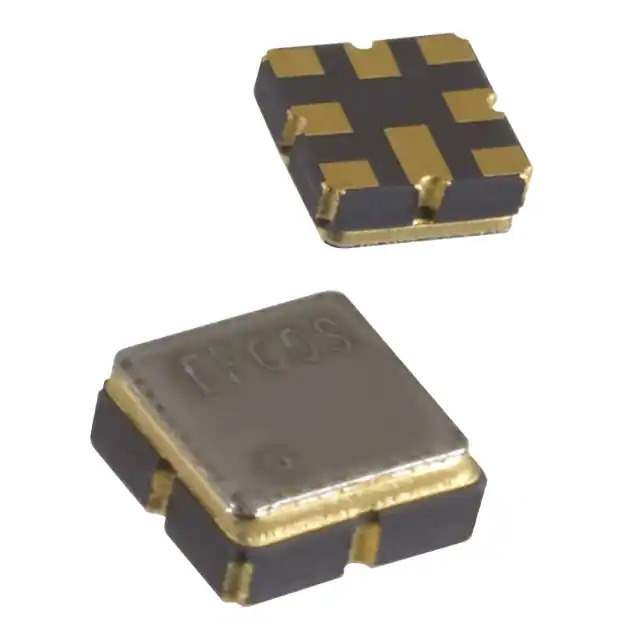

B39741B8649P810 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Multiplexers
Mfr Qualcomm
Series B8649
Package Tape & Reel
Product Status Active
Frequency Bands (Low / High) 699MHz ~ 716MHz / 729MHz ~ 746MHz
Low Band Attenuation (min / max dB) 45.00dB / 58.00dB
High Band Attenuation (min / max dB) 45.00dB / 60.00dB
Mounting Type Surface Mount
Package / Case 8-SMD, No Lead
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Win Source Part Number 912486-B39741B8649P810
Ultra Librarian 3D Model Ultra Librarian B39741B8649P810 CAD Model

Description

The 912486-B39741B8649P810 is an RF multiplexer from Qualcomm's B8649 series. It is designed for use in RF and wireless applications.

  • Frequency Range (Low Band): 699MHz to 716MHz
  • Frequency Range (High Band): 729MHz to 746MHz
  • Low Band Attenuation: 45.00dB to 58.00dB
  • High Band Attenuation: 45.00dB to 60.00dB
  • Package: Surface Mount
  • Configuration: 8-SMD, no lead
  • Standard Package: 5,000 pcs
  • Product Status: Active
