Same model may have multiple batches, images only for reference.

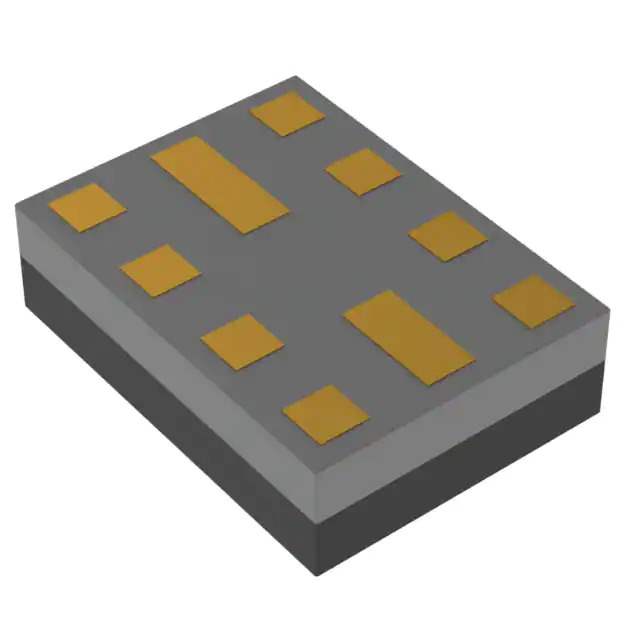

B39171B5070H810 Real Image
Same model may have multiple batches, images only for reference.

B39171B5070H810

Part No B39171B5070H810
Manufacturer Qualcomm
Catalog SAW Filters
Description FILTER SAW 167MHZ 10SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr Qualcomm
Package Tape & Reel
Product Status Obsolete
Frequency - Center 167MHz
Bandwidth 15MHz
Insertion Loss 7.3dB
Applications Cellular, WCDMA
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Height (Max) 0.052" (1.33mm)
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 912449-B39171B5070H810
Ultra Librarian 3D Model Ultra Librarian B39171B5070H810 CAD Model

Description

The 912449-B39171B5070H810 is a SAW filter used in electronic devices for cellular and WCDMA applications.

  • Package: 10-SMD, no lead package
  • Mounting: Surface mountable
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height: 0.052" (1.33mm)
  • Bandwidth: 15MHz
  • Center Frequency: 167MHz
  • Insertion Loss: 7.3dB
  • Standard Package: 3,000 pcs
  • Manufacturer: Qualcomm
  • Market Status: Obsolete
