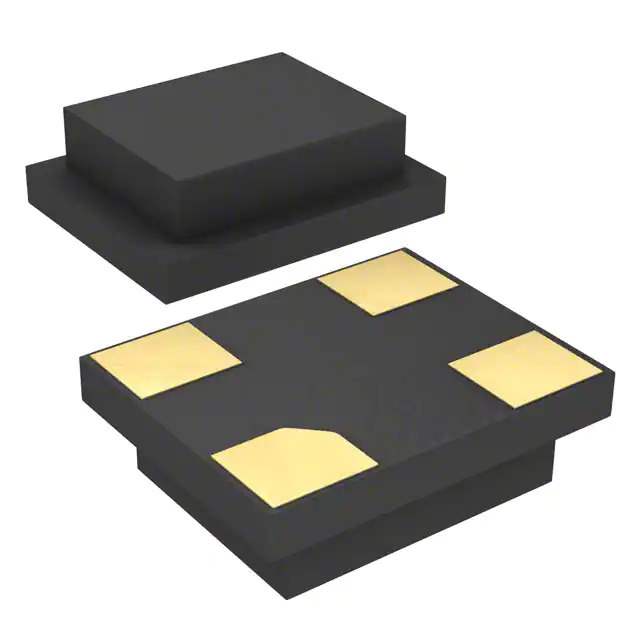

Same model may have multiple batches, images only for reference.

B39162B9080L310

Name: B39162B9080L310
Brand: Qualcomm
SKU: 567981
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	B39162B9080L310
Manufacturer	Qualcomm
Catalog	SAW Filters
Description	FILTER SAW 1.575GHZ 4SMD
Datasheet	B39162B9080L310 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - SAW Filters
Mfr	Qualcomm
Package	Tape & Reel
Product Status	Obsolete
Frequency - Center	1.575GHz
Bandwidth	4MHz
Insertion Loss	1.2dB
Applications	GPS
Mounting Type	Surface Mount
Package / Case	4-SMD, No Lead
Height (Max)	0.033" (0.86mm)
Size / Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Standard Package	3,000 pcs
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	7A994
HTSUS	8541.60.0080
Win Source Part Number	567981-B39162B9080L310
Ultra Librarian 3D Model	Ultra Librarian B39162B9080L310 CAD Model

Description

The 567981-B39162B9080L310 is a SAW filter designed for GPS applications.

Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
Mount: Surface Mount
Center Frequency: 1.575GHz
Bandwidth: 4MHz
Insertion Loss: 1.2dB
Height: 0.033" (0.86mm)
Package: Tape and reel format with 3,000 pieces per package
Manufacturer: Qualcomm
