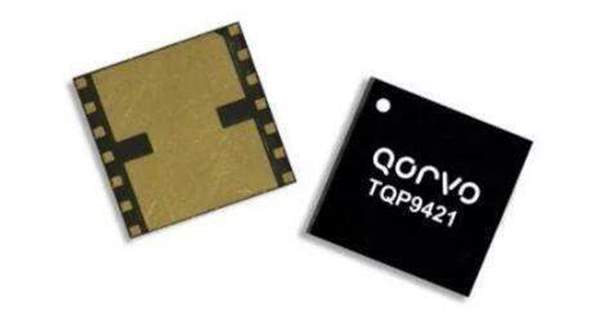

TQP9421 Qorvo
Same model may have multiple batches, images only for reference.

TQP9421

Part No TQP9421
Manufacturer Qorvo US Inc.
Catalog RF Amplifiers
Description RF Amplifier 2.11-2.17GHz Gn 30dB .5W 2 Stage
Datasheet
TQP9421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Qorvo
Category RF Amplifier
Operating Frequency 2.11 GHz to 2.17 GHz
Operating Supply Voltage 4.5 V
Operating Supply Current 780 mA
Gain 30 dB
Type Power Amplifiers
Mounting Style SMD/SMT
Package / Case 7 mm x 7 mm
Technology Si
P1dB - Compression Point 35.5 dBm
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Ultra Librarian 3D Model Ultra Librarian TQP9421 CAD Model

Description

The TQP9421 is a high-linearity two-stage power amplifier in a low-cost surface-mount package with on-chip bias control and temperature control circuits, suitable for small cell base station applications.
The TQP9421 provides 30 dB gain and +27 dBm linear power over the 2.11 – 2.17 GHz frequency range. This
amplifier is able to achieve −50 dBc ACLR at +27 dBm output power using 20 MHz LTE signal.
