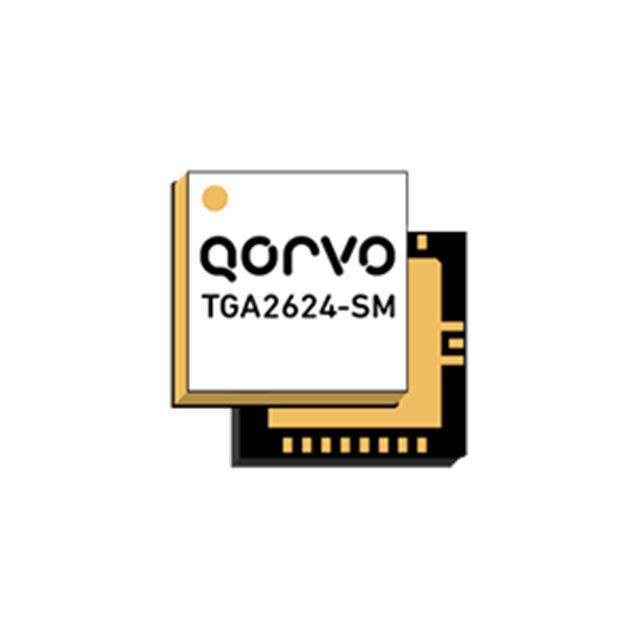

Qorvo’s TGA2624-SM is a packaged, high power X-Band amplifier fabricated on Qorvo’s production 0.25 um GaN on SiC process. Operating from 9-10 GHz, the TGA2624-SM typically generates 20 W of saturated output power with a power-added efficiency greater than 40% and 25 dB of large signal gain. The TGA2624-SM is packaged in a 7 x 7 mm air-cavity, laminate based QFN. Both RF ports are internally DC blocked and matched to 50 ohms enabling simple system integration. Ideally suited for pulsed applications, the TGA2624-SM offers excellent power, PAE and gain performance that can save costs on existing platforms while enabling the development of future systems.
