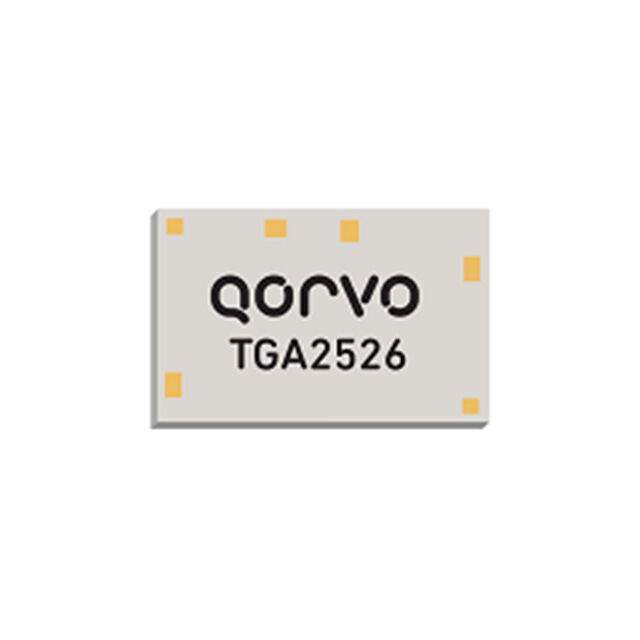

The Qorvo TGA2526 is a compact LNA Gain Block MMIC with adjustable gain control (AGC). The LNA operates from 2-20 GHz and is designed using Qorvo proven standard 0.15 um Power pHEMT production process.The TGA2526 provides a nominal 20 dBm of output power at 1 dB gain compression with a small signal gain of 17.5
dB. Greater than 30 dB adjustable gain can be achieved using the Vg2 pin. Typical noise figure is 2.5 dB at 12 GHz. Special circuitry on Vd, Vg1 and Vg2 pins provides ESD protection.
The TGA2526 is suitable for a variety of wideband systems such as point to point radios, radar warning receivers and electronic counter measures.
