Same model may have multiple batches, images only for reference.

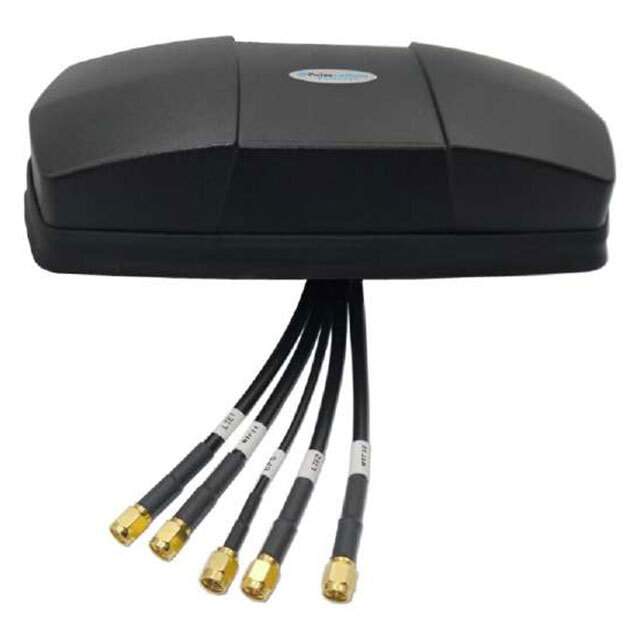

ARM62311AM Real Image
Same model may have multiple batches, images only for reference.

ARM62311AM

Part No ARM62311AM
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 829MHZ/1.582GHZ MOD ADH / 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz GPS, LTE, Wi-Fi Module RF Antenna 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz 4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi SMA Male (3), RP-SMA Male (3) Adhesive
Datasheet
ARM62311AM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr PulseLarsen Antennas
Series ARMADILLO
Package Bulk
RF Family/Standard Cellular, Navigation, WiFi
Frequency Group Wide Band
Frequency (Center/Band) 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz
Frequency Range 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz
Antenna Type Module
Number of Bands 6
VSWR 2, 2.5
Gain 4.6dBi, 5.1dBi, 4.9dBi, 7.9dBi
Features Cable - 5.18m, LNA
Termination SMA Male (3), RP-SMA Male (3)
Ingress Protection IP67
Mounting Type Adhesive
Height (Max) 1.772" (45.00mm)
Applications GPS, LTE, Wi-Fi
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8529.10.9100
Other Names 1837-1052,-1839-ARM62311AM,ARM62311AM-ND
Standard Package 1
Win Source Part Number 1118498-ARM62311AM
Ultra Librarian 3D Model Ultra Librarian ARM62311AM CAD Model

Description

The PulseLarsen Antennas ARM62311AM is a high-performance RF Antenna manufactured by PulseLarsen Antennas.

  • Frequency Range: 698MHz to 960MHz, 1.559GHz to 1.606GHz, 1.71GHz to 2.69GHz, 2.4GHz to 2.5GHz, and 5.15GHz to 5.925GHz
  • Gain: 4.6dBi to 7.9dBi
  • Applications: GPS, LTE, and Wi-Fi
  • Antenna Type: module
  • Bands: six
  • Termination: SMA Male (3) and RP-SMA Male (3)
  • Ingress Protection: IP67
  • Application: outdoor
