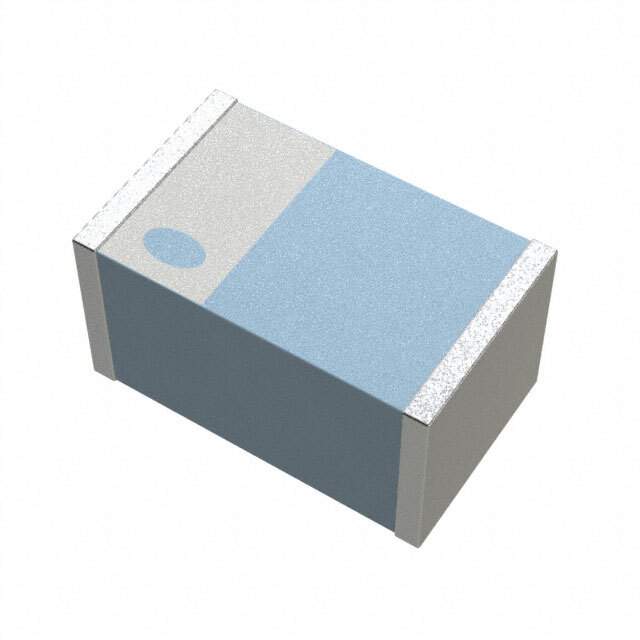

ANT2012LL00R2400A Real Image
Same model may have multiple batches, images only for reference.

ANT2012LL00R2400A

Part No ANT2012LL00R2400A
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 2.45GHZ CHIP SOLDER SMD / 2.45GHz Bluetooth, ISM, Wi-Fi, Zigbee™ Chip RF Antenna 2.4GHz ~ 2.5GHz 3.77dBi Solder Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr PulseLarsen Antennas
Series 2012
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, General ISM, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Chip
Number of Bands 1
Return Loss 10dB
Gain 3.77dBi
Power - Max 1 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.043" (1.10mm)
Applications Bluetooth, ISM, Wi-Fi, Zigbee™
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 311-4589-6,311-4589-2,311-4589-1
Standard Package 4,000
Win Source Part Number 961960-ANT2012LL00R2400A
Ultra Librarian 3D Model Ultra Librarian ANT2012LL00R2400A CAD Model

Description

The 961960-ANT2012LL00R2400A RF Antenna is a chip type antenna with a frequency range of 2.4GHz to 2.5GHz, making it ideal for Bluetooth, ISM, Wi-Fi, and Zigbee applications.

  • Frequency Range: 2.4GHz to 2.5GHz
  • Maximum Power: 1W
  • Return Loss: 10dB
  • Gain: 3.77dBi
  • Mounting: SMD (SMT)
  • Series: 2012
  • Packaging: Tape and reel
  • Manufacturer: PulseLarsen Antennas
  • RF Family/Standard: 802.15.4, Bluetooth, General ISM, and WiFi
