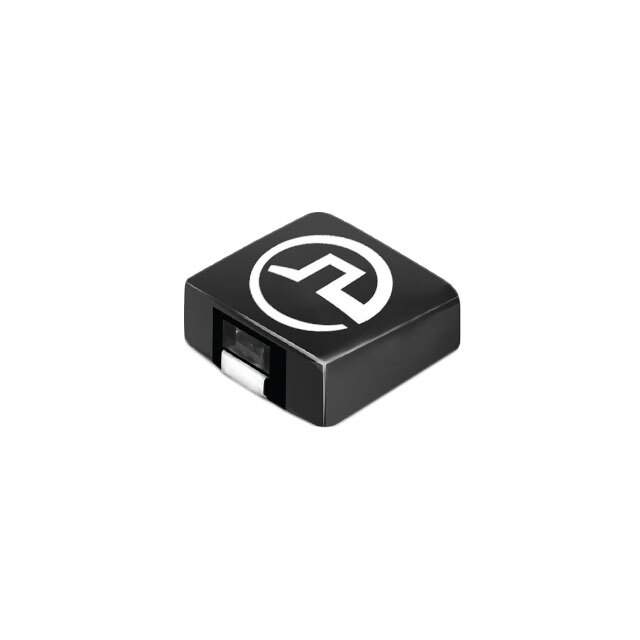

Same model may have multiple batches, images only for reference.

PG0426.331NLT

Get a Quote

Part No	PG0426.331NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 330NH 20A 3.4 MOHM SMD / 330 nH Shielded Wirewound Inductor 20 A 3.4mOhm Max Nonstandard
Datasheet	PG0426.331NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PG0426NL
Package	Tape & Reel (TR)
Type	Wirewound
Inductance	330 nH
Tolerance	±20%
Current Rating (Amps)	20 A
Current - Saturation (Isat)	34A
Shielding	Shielded
DC Resistance (DCR)	3.4mOhm Max
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max)	0.126" (3.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	1,400
Win Source Part Number	1004354-PG0426.331NLT
Ultra Librarian 3D Model	Ultra Librarian PG0426.331NLT CAD Model

Alternative Products

Description

The PG0426.331NLT is a fixed inductor from Pulse Electronics Power.

Series: PG0426NL
Package: tape and reel
Type: Shielded wirewound inductor
Inductance: 330 nH
Tolerance: ±20%
Dimensions: 0.295" L x 0.276" W (7.50mm x 7.00mm)
DC Resistance: 3.4mOhm
Current Rating: 20 A
