Same model may have multiple batches, images only for reference.

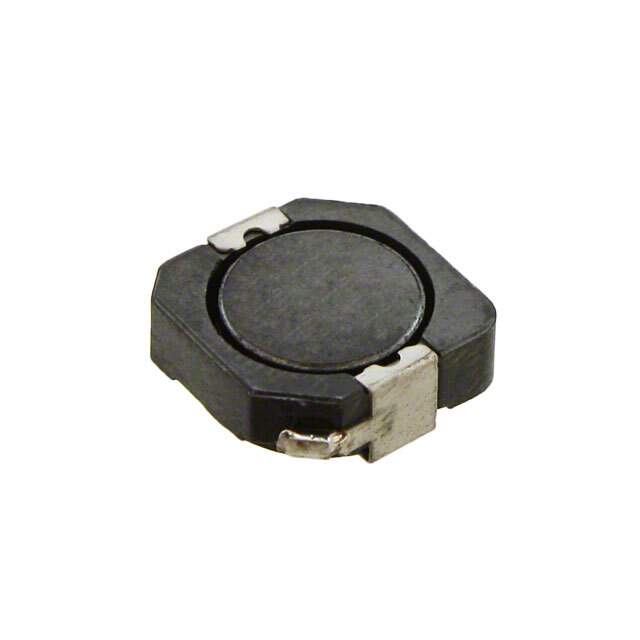

PF0560.103NLT Real Image
Same model may have multiple batches, images only for reference.

PF0560.103NLT

Part No PF0560.103NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 10UH 3.8A 35 MOHM SMD
Datasheet
PF0560.103NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 15 Weeks
Features 10 µH Shielded Wirewound Inductor 3.8 A 35mOhm Max Nonstandard -
Manufacturer Pulse
Series PF0560NL
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number PF0560103NLT, 553-1749-1, 553-1749-2, PF0560.103NLT-ND, 553-1749-6
Quantity per package 620
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 888983-PF0560.103NLT
Ultra Librarian 3D Model Ultra Librarian PF0560.103NLT CAD Model

Description

The Pulse PF0560.103NLT is a shielded wirewound inductor with an inductance value of 10 µH.

  • Maximum Current Rating: 3.8 A
  • Maximum Resistance: 35 mOhm
  • Package Type: reel
  • Mounting: Surface
  • Series: PF0560NL
  • Operating Temperature Range: -40°C to 125°C
  • MSL Level: 1
  • ECCN: EAR99
  • HTSUS code: 8504.50.4000
  • Quantity per package: 620
  • Estimated production lead time: 15 weeks
  • REACH status: REACH unaffected
