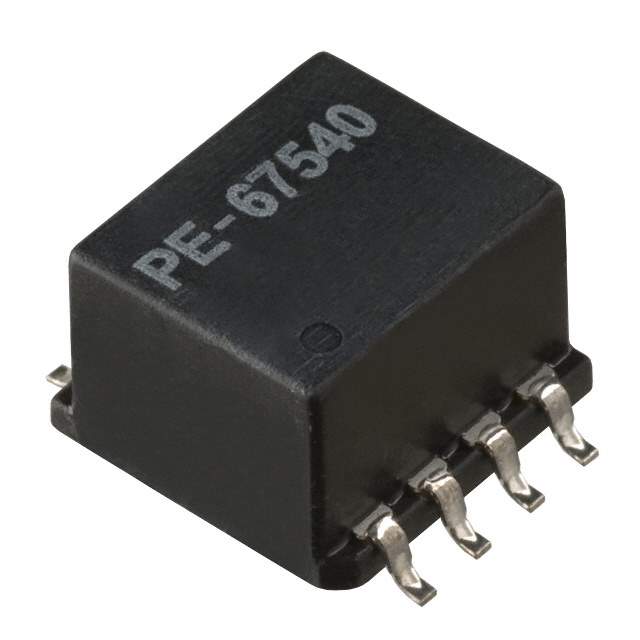

The PE-67540NL is an Ethernet transformer from Pulse Electronics, designed for use in 10/100/1000Base-T applications. This component is crucial for providing electrical isolation and impedance matching between the Ethernet PHY and the network cable, ensuring reliable data transmission and protecting sensitive circuitry from voltage surges and electrical noise. The 'NL' suffix signifies that the component is lead-free and RoHS compliant.

Applications

• Networking equipment
• Ethernet switches
• Routers
• Network interface cards (NICs)
• Embedded systems with Ethernet connectivity

Features

• Supports 10/100/1000Base-T Ethernet speeds
• Meets IEEE 802.3 standards for Ethernet
• Provides electrical isolation
• RoHS compliant (lead-free)
• Optimized for signal integrity

Benefits

• Enhances the reliability of Ethernet connections
• Protects sensitive components from electrical damage
• Ensures compliance with environmental regulations
• Improves signal quality and reduces data errors
• Facilitates integration into a variety of networking devices

Additional Details

The PE-67540NL transformer features specific inductance, leakage inductance, interwinding capacitance, and turns ratio, all precisely engineered to optimize signal transmission characteristics for Gigabit Ethernet. It is designed to minimize insertion loss and maximize return loss, preventing signal reflections and ensuring optimal performance. The physical package is designed for automated assembly processes and reflow soldering. The insulation voltage rating is specified to withstand high voltage transients, providing a robust barrier against electrical hazards. The component operates within a defined temperature range, typically specified for commercial or industrial applications. The transformer contributes to common-mode noise rejection, improving the overall signal quality. Detailed specifications are available from Pulse Electronics, including parameters related to frequency response, impedance matching, and isolation voltage.
