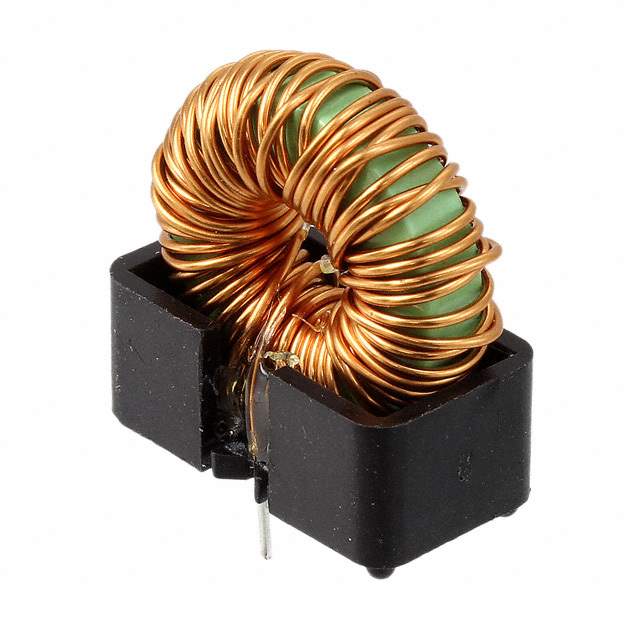

PE-54044NL Real Image
Same model may have multiple batches, images only for reference.

PE-54044NL

Part No PE-54044NL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 77UH 3A 80 MOHM TH / 77 µH Shielded Toroidal Inductor 3 A 80mOhm Radial, Vertical (Open)
Datasheet
PE-54044NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Pulse Electronics
Packaging Tray
Type Toroidal
Inductance 77 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Shielding Shielded
DC Resistance (DCR) 80mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 20 kHz
Mounting Through Hole
Case / Package Radial, Vertical (Open)
Size / Dimension 0.830" L x 0.450" W (21.09mm x 11.43mm)
Height - Seated (Max) 0.950" (24.13mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number PE-54044NL-ND,553-2112,PE54044NL
Standard Package 55
Win Source Part Number 1327557-PE-54044NL
Ultra Librarian 3D Model Ultra Librarian PE-54044NL CAD Model

Description

The fixed inductor from Pulse Electronics is a toroidal type inductor that is shielded.

  • Type: toroidal
  • Shielding: shielded
  • Size/Dimension: 0.830" L x 0.450" W (21.09mm x 11.43mm)
  • Inductance: 77 µH
  • Height - Seated (Max): 0.950" (24.13mm)
  • Standard Package: 55
  • Mounting Type: through hole
  • Tolerance: ±20%
  • DC Resistance (DCR): 80mOhm
