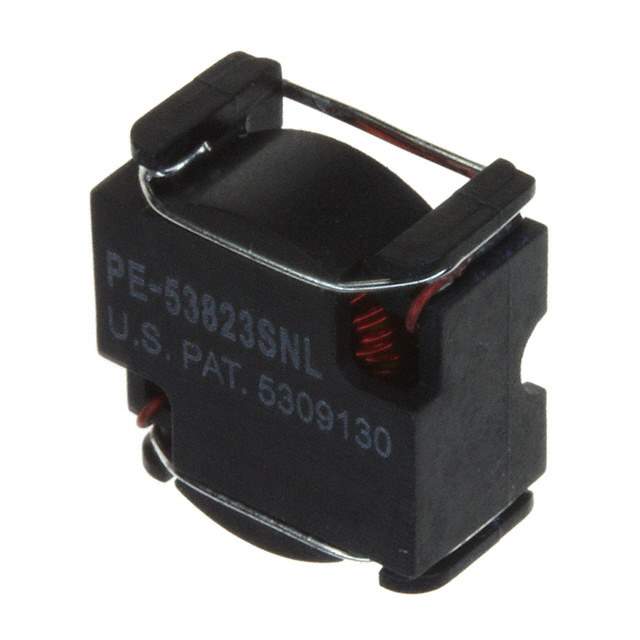

PE-53823SNL Real Image
Same model may have multiple batches, images only for reference.

PE-53823SNL

Part No PE-53823SNL
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 38UH 1.2A 100 MOHM SMD / Tested and recommended by National Semiconductor Base material meets flammability requirements of UL 94V-0
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Power
Packaging Bulk
Type Toroidal
Inductance 38μH
Tolerance ±20%
Current Rating (Amps) 1.2A
Shielding Shielded
DC Resistance (DCR) 100mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.570" L x 0.565" W (14.48mm x 14.35mm)
Height - Seated (Maximum) 0.360" (9.14mm)
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813265-PE-53823SNL
Ultra Librarian 3D Model Ultra Librarian PE-53823SNL CAD Model

Description

The Pulse Electronics Power toroidal transformer with part number 813265-PE-53823SNL is a shielded transformer.

  • Packaging: Bulk
  • Type: Toroidal
  • Mounting Style: SMD
  • Inductance: 38μH
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C ~ 130°C
  • DC Resistance (DCR): 100mOhm
  • Height (Seated): 0.360" (9.14mm)
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 30
  • MSL Level: 1 (Unlimited)
  • Dimension: 0.570" L x 0.565" W (14.48mm x 14.35mm)
